flat-sheet← Cutlite Penta Italian Fiber Lasers, Tube & SheetModel 3015 / 4015 / 4020 / 6020 / 6225

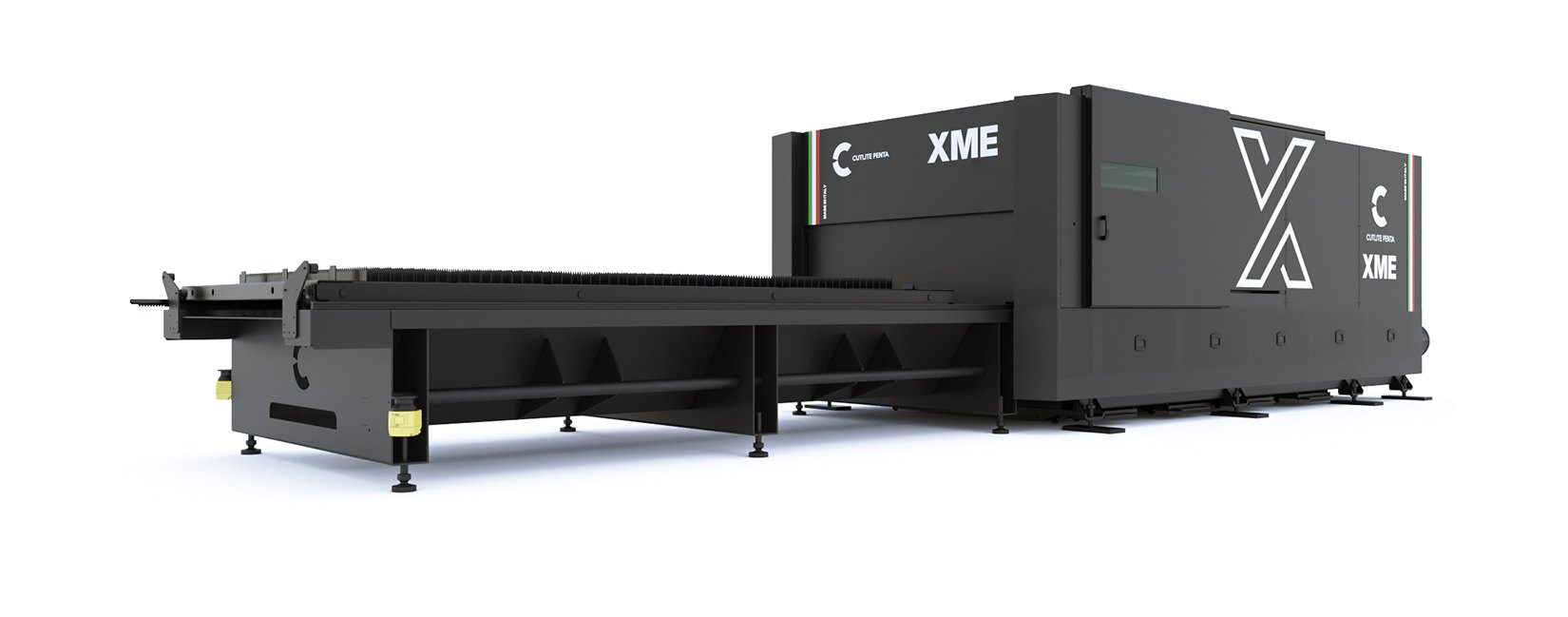

XME / XMF, Entry-Level Fiber
European build quality without flagship pricing
10×5 ft to 20.4×8.4 ft
- ✓Replace CO2 without flagship capital outlay
- ✓Same EVO 3 head as PLUS, identical cut quality
- ✓Self-replaceable work-table slats
Sheet MetalCO2 ReplacementJob ShopMid-Production
Overview
Replace an aging CO2 system without a flagship capital outlay. The XME runs the same EVO 3 head, the same NEMA 12 source, and the same vacuum scrap-handling as the PLUS line, built in the same Italian facility to the same standards. CE compliant; CSA-certified versions available for Canada.
Specifications
Source
Power2 / 3 / 4 / 6 / 8 / 12 / 15 / 20 kW
Options
AvailableSmart Mix (15 & 20 kW) · Smart Raster · Smart Camera · XMF-Bevel
Available Configurations
| Model | Cutting Area |
|---|---|
| 3015 | 10' × 5' |
| 4015 | 13' × 5' |
| 4020 | 13' × 6.7' |
| 6020 | 20' × 6.7' |
| 6225 | 20.4' × 8.4' |
Additional configurations available on request.
Key Features
- ›Electro-welded steel base, lightweight gantry
- ›Brushless motor + rack-and-pinion drive
- ›EVO 3 cutting head
- ›Modular 500 mm vacuum sections
- ›CE compliant, CSA-certified
- ›Optional Smart Mix / Raster / Camera / XMF Bevel
