Every press brake tooling brand Forge Manufacturing Solutions carries, in one catalog — punches, dies, holders, and accessories from Wilson Tool · WILA · Eurostamp. Filter by brand and category, add the tools you need, and request a quote. We price every brand to your job — no guessing against a shelf price.

Brands3

Products112

Need a Quote?515-639-7804

Brand

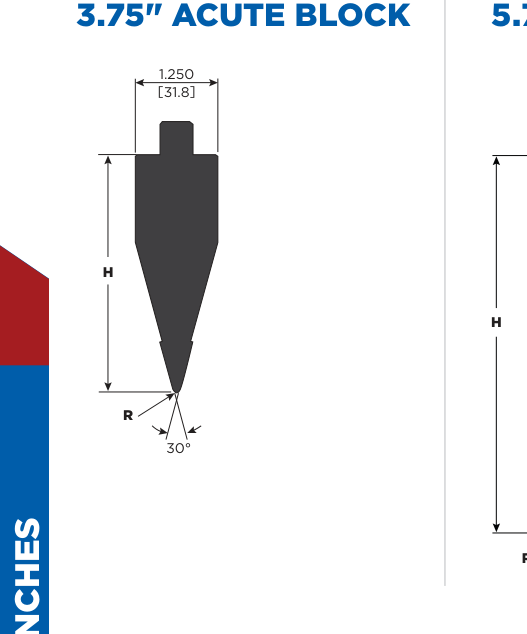

3.75" Acute Block Punch

Acute Block

30°

Style: Acute Block
Height: 3.75"
Angle: 30°

Punches5.75"

Wilson Tool · B350C American Precision

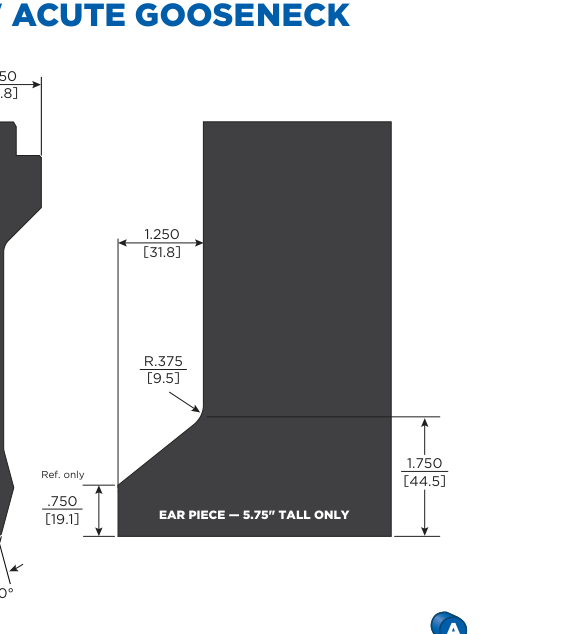

5.75" Acute Gooseneck Punch

Acute Gooseneck

30°

Style: Acute Gooseneck
Height: 5.75"
Angle: 30°

Punches3.75"

Wilson Tool · B350C American Precision

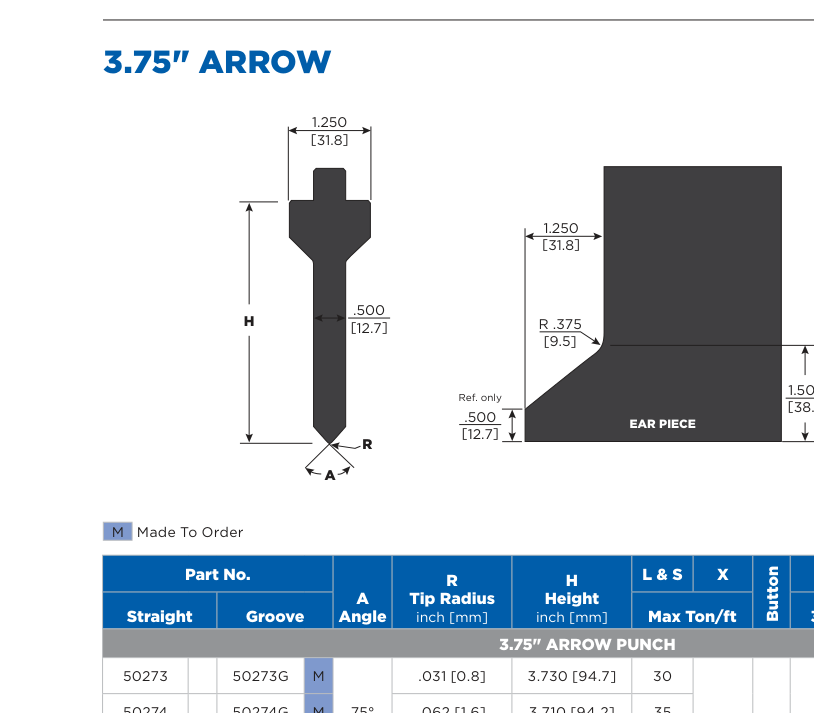

3.75" Arrow Punch

Arrow

75° / 88° / 90°

Style: Arrow
Height: 3.75"
Angles Available: 75° / 88° / 90°

Punches3.75"

Wilson Tool · B350C American Precision

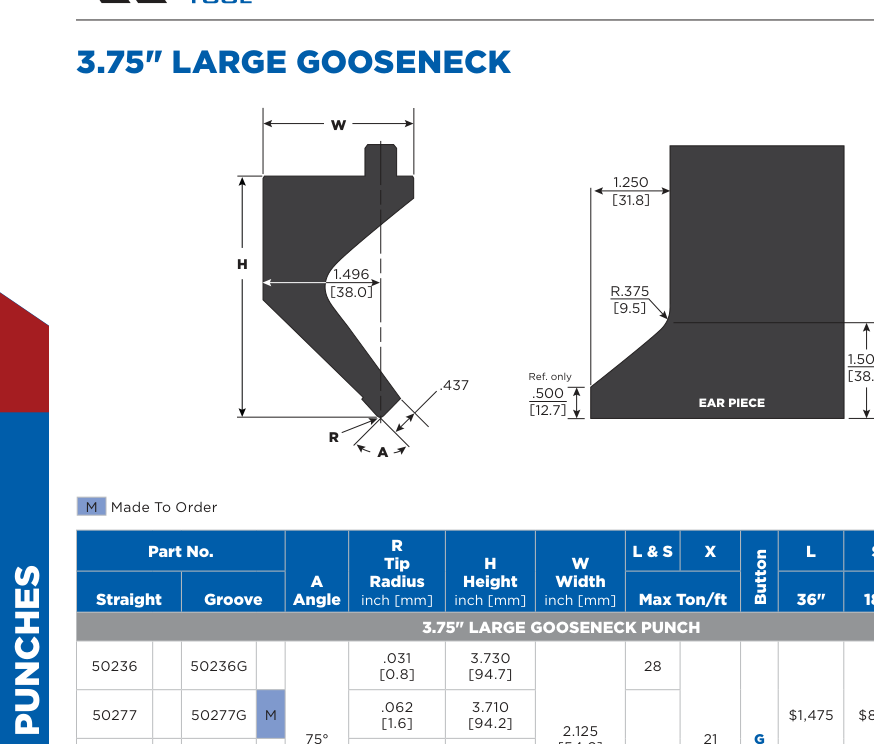

3.75" Large Gooseneck Punch

Large Gooseneck

75° / 88° / 90°

Style: Large Gooseneck
Height: 3.75"
Angles Available: 75° / 88° / 90°

Punches5.75"

Wilson Tool · B350C American Precision

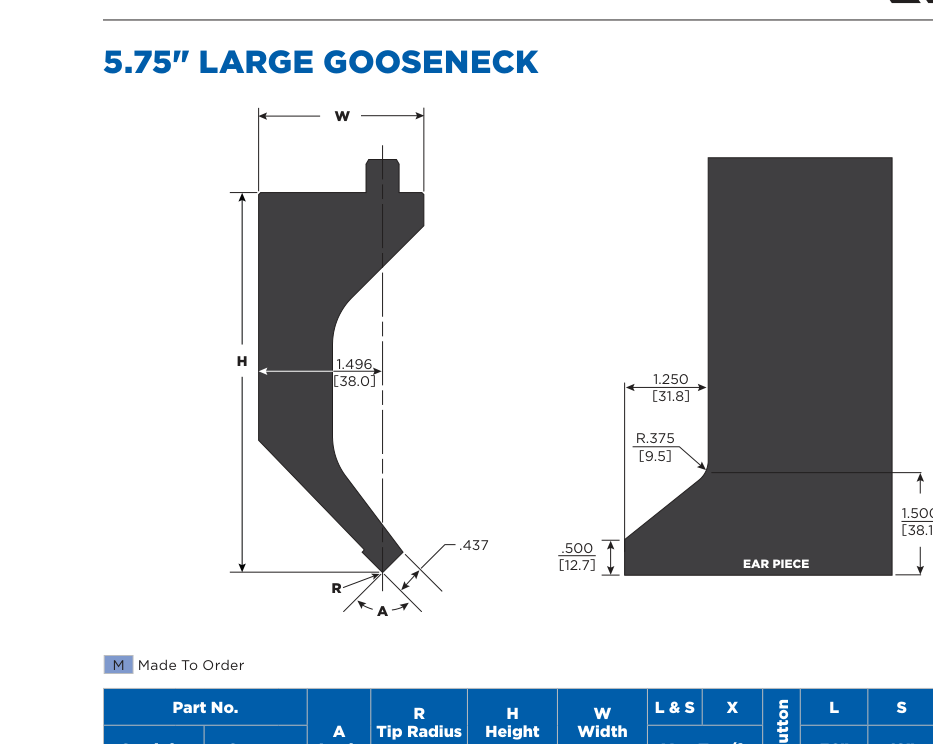

5.75" Large Gooseneck Punch

Large Gooseneck

75° / 88° / 90°

Style: Large Gooseneck
Height: 5.75"
Angles Available: 75° / 88° / 90°

Punches3.75"

Wilson Tool · B350C American Precision

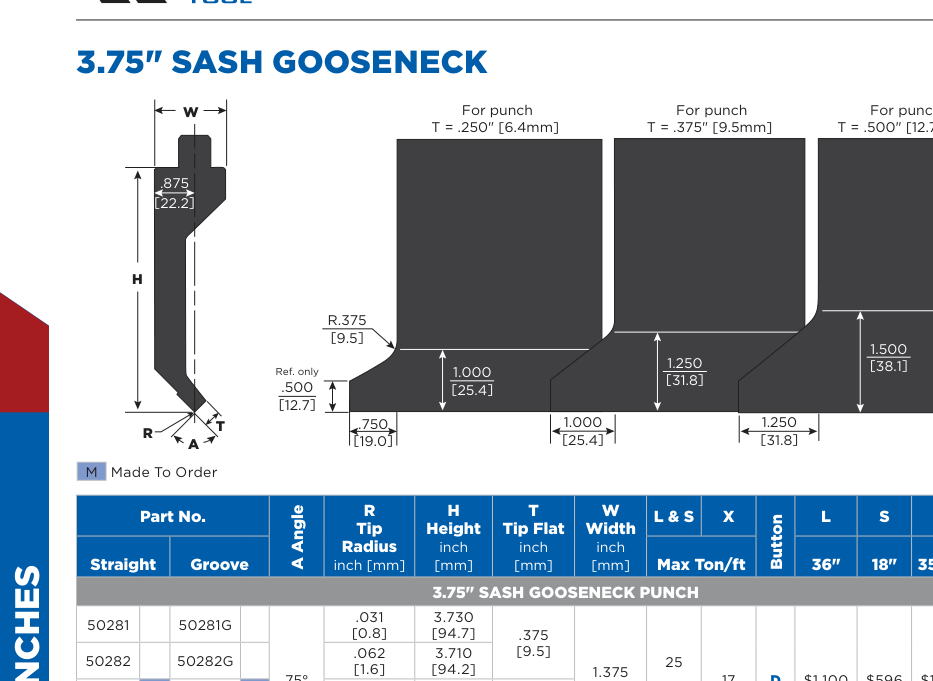

3.75" Sash Gooseneck Punch

Sash Gooseneck

88° / 90°

Style: Sash Gooseneck
Height: 3.75"
Angles Available: 88° / 90°

Punches5.75"

Wilson Tool · B350C American Precision

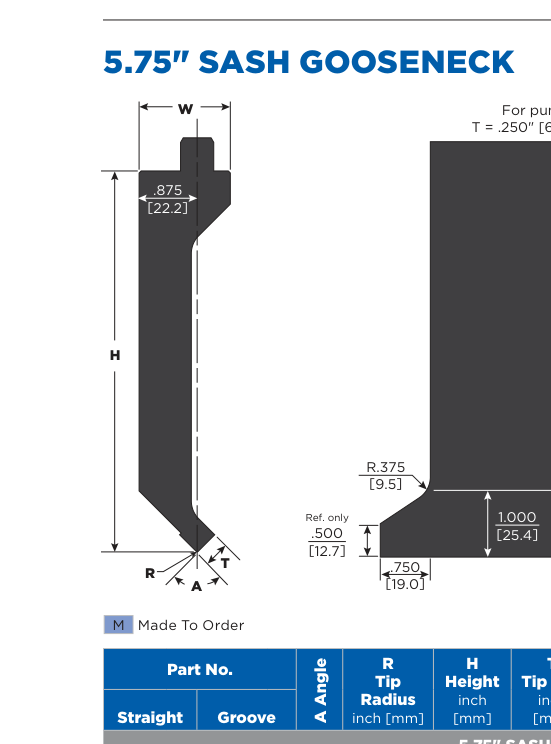

5.75" Sash Gooseneck Punch

Sash Gooseneck

88° / 90°

Style: Sash Gooseneck
Height: 5.75"
Angles Available: 88° / 90°

Punches8.75"

Wilson Tool · B350C American Precision

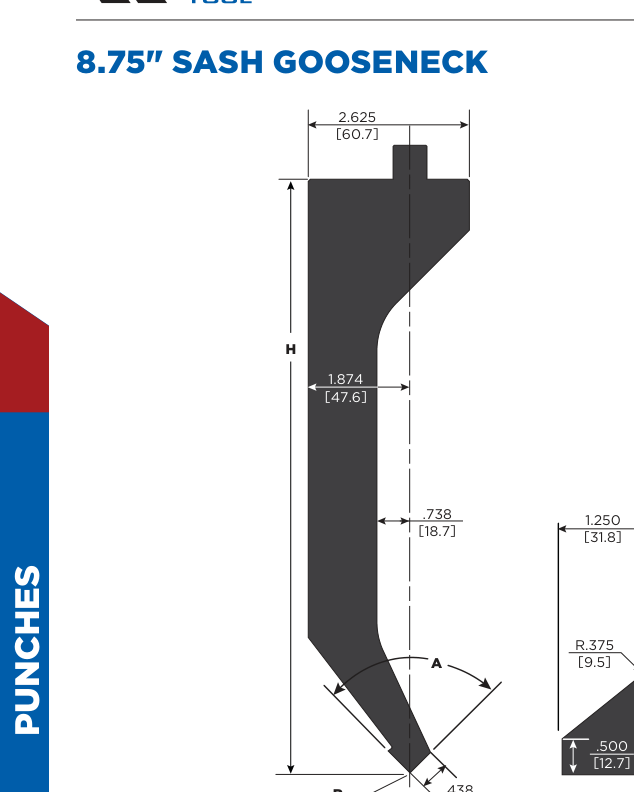

8.75" Sash Gooseneck Punch

Sash Gooseneck

88°

Style: Sash Gooseneck
Height: 8.75"
Angle: 88°

Punches8.75"

Wilson Tool · B350C American Precision

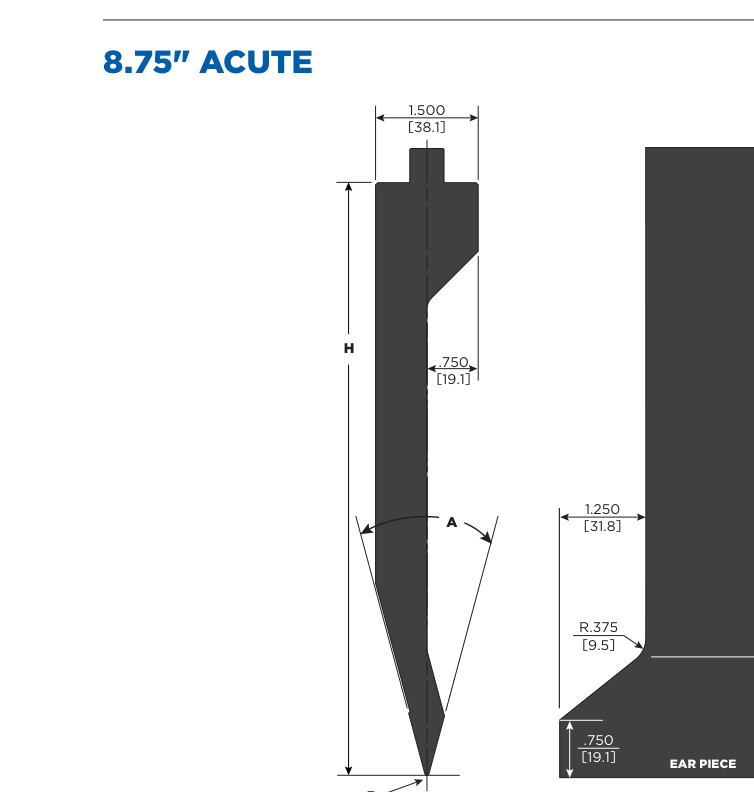

8.75" Acute Punch

Acute

30°

Style: Acute
Height: 8.75"
Angle: 30°

Punches8.75"

Wilson Tool · B350C American Precision

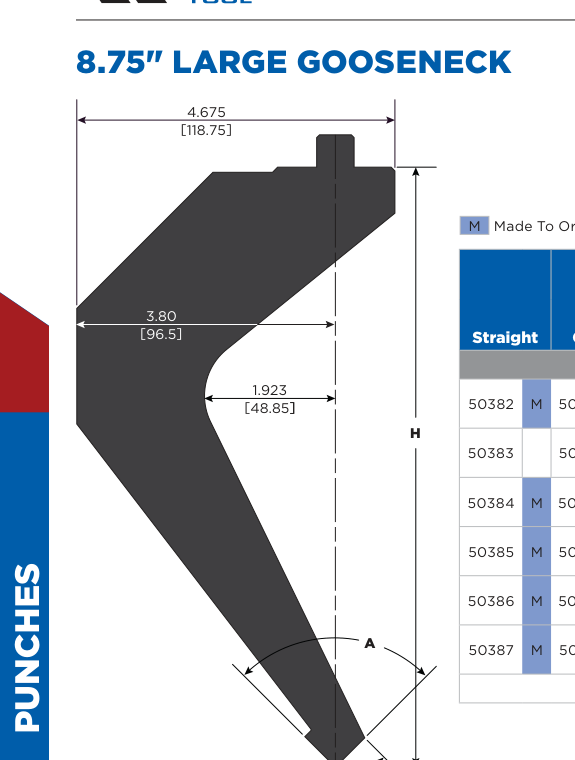

8.75" Large Gooseneck Punch

Large Gooseneck

90°

Style: Large Gooseneck
Height: 8.75"
Angle: 90°

Punches3.75"

Wilson Tool · B350C American Precision

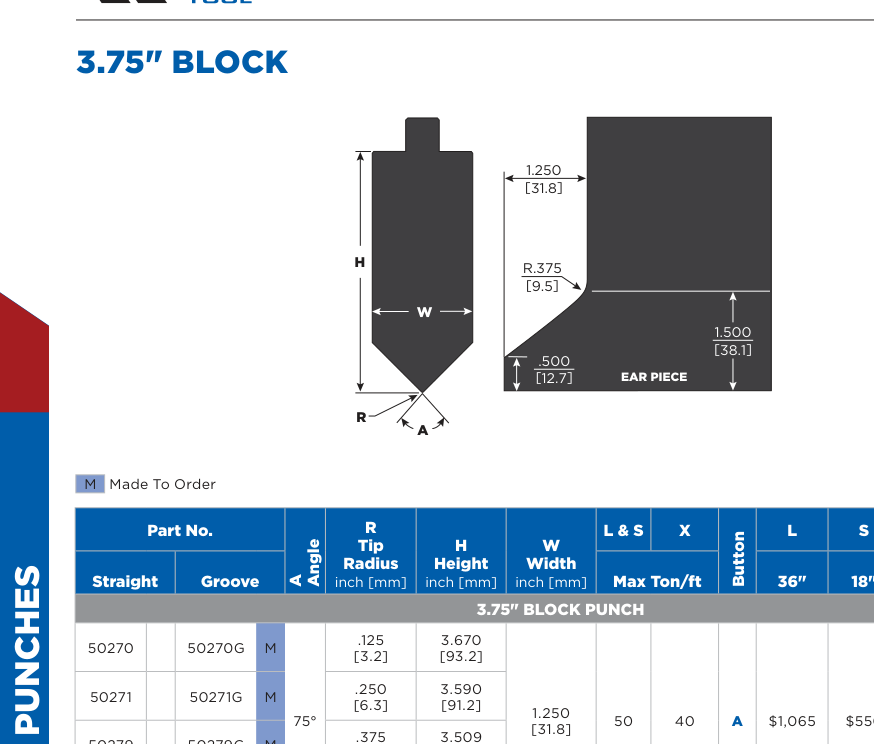

3.75" Block Punch

Block

75° / 85° / 88°

Style: Block
Height: 3.75"
Angles Available: 75° / 85° / 88°

Punches5.75"

Wilson Tool · B350C American Precision

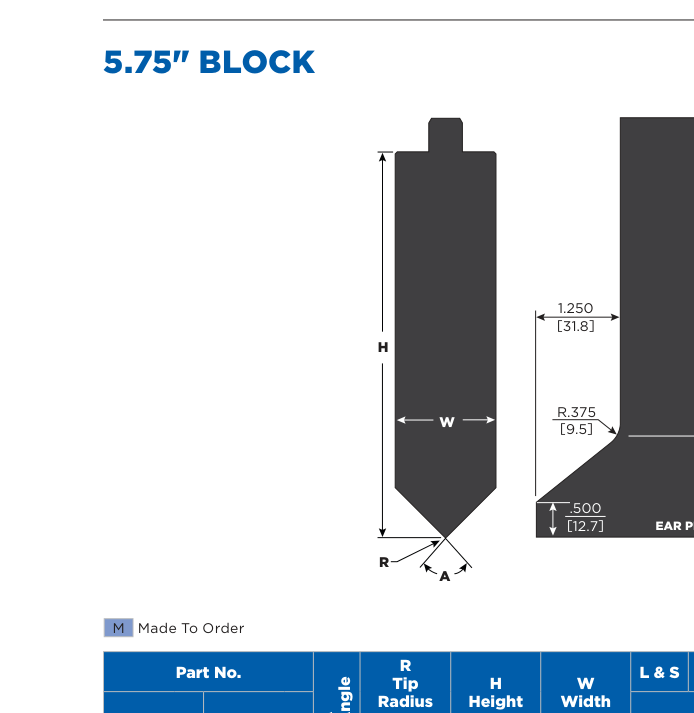

5.75" Block Punch

Block

88°

Style: Block
Height: 5.75"
Angle: 88°

Dies

Wilson Tool · V-Series Black

Model 1 Solid Die – 9.84"

Solid V-Die

85°

Style: Solid V-Die
Series: V-Series Black
Model: 1

Dies

Wilson Tool · V-Series Black

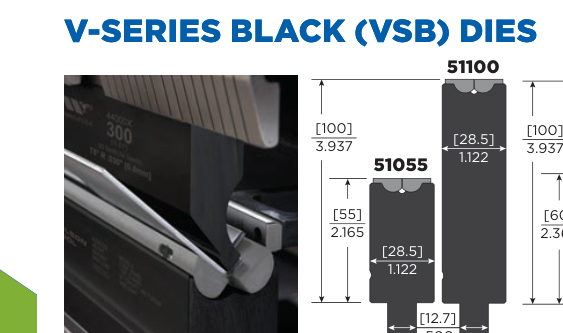

Model 1 Solid Die – 19.68"

Solid V-Die

85°

Style: Solid V-Die
Series: V-Series Black
Model: 1

Dies

Wilson Tool · V-Series Black

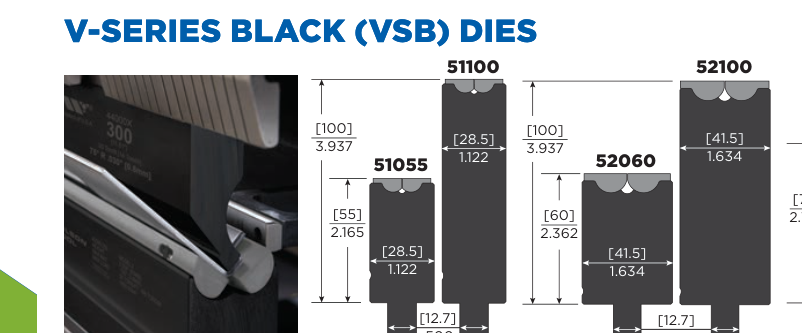

Model 2 Solid Die – 9.84"

Solid V-Die

85°

Style: Solid V-Die
Series: V-Series Black
Model: 2

Dies

Wilson Tool · V-Series Black

Model 3 Solid Die – 3.94"

Solid V-Die

85°

Style: Solid V-Die
Series: V-Series Black
Model: 3

Dies

Wilson Tool · V-Series Black

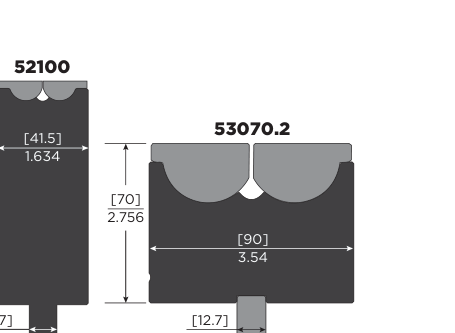

Model 3 Solid Die – 9.84"

Solid V-Die

85°

Style: Solid V-Die
Series: V-Series Black
Model: 3

Clamping

WILA · New Standard Premium

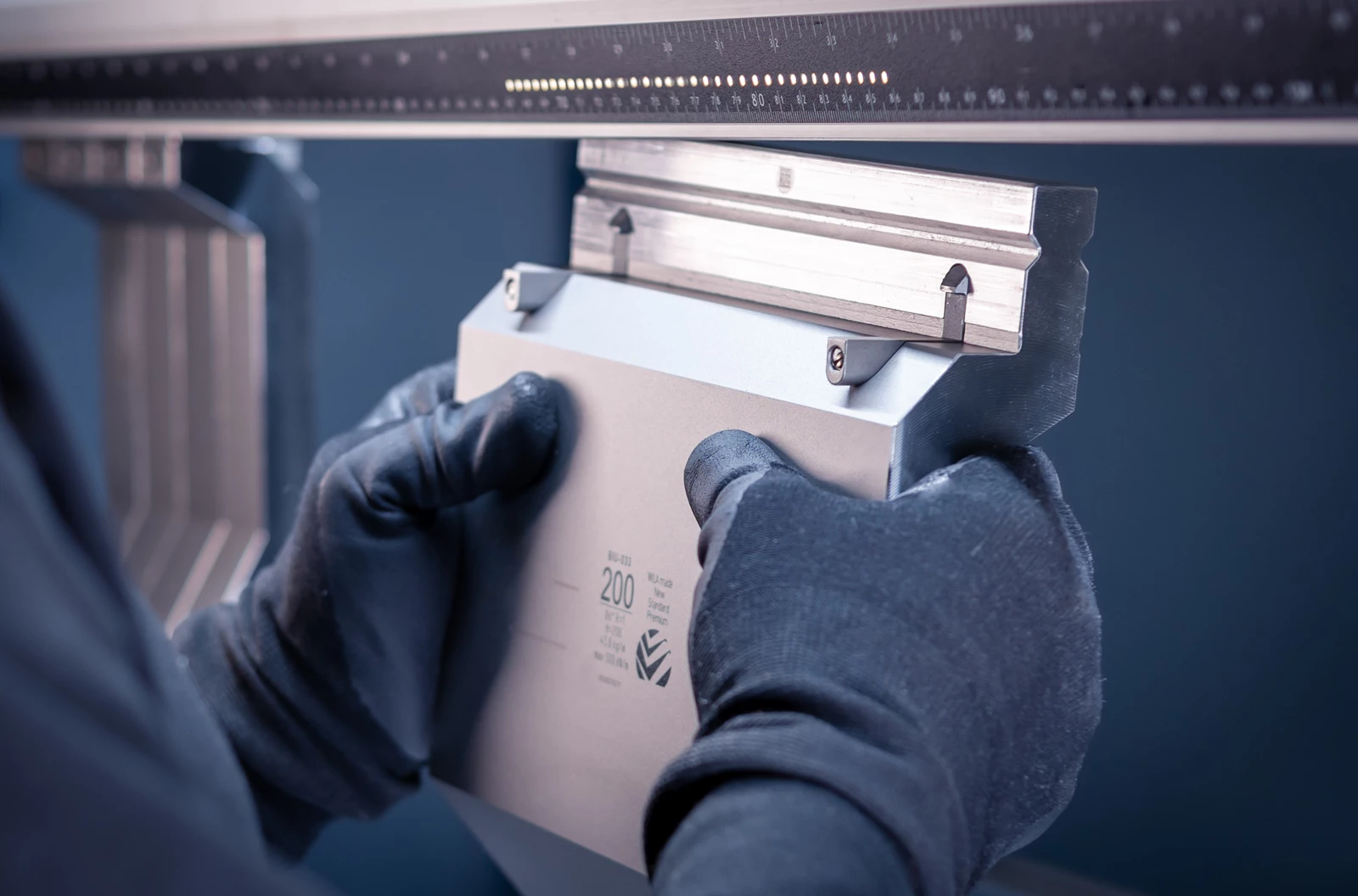

New Standard Premium Clamping (NSCL-II-HC)

Hydraulic Top-Tool Clamping

NSCL-II-HC/UPB — Hydraulic / NSCL-II-MC/UPB — Manual (optional)

Adaption: NS I head load / NS II shoulder load
Tool slot: CNC-Deephardened
Alignment: Tx (horizontal)

Clamping

WILA · New Standard HD Premium

New Standard HD Premium Clamping (NSCL-HD-II-HC)

Heavy Duty Hydraulic Clamping

NSCL-HD-II-HC/UPB

Adaption: NS I head load / NS II shoulder load
Tool slot: CNC-Deephardened
Guards: E2M with roll-out prevention

Clamping

WILA · New Standard Premium

New Standard Premium Self-Locking Clamping (NSCL-II-SL)

Pneumatic Self-Locking Clamping

NSCL-II-SL/UPB

Adaption: NS I head load / NS II shoulder load
Tool slot: CNC-Deephardened
Alignment: Tx (horizontal)

Clamping

WILA · New Standard Pro

New Standard Pro Clamping (NSCL-I-HC)

Hydraulic Top-Tool Clamping

NSCL-I-HC/UPB / NSCL-I-HC/ES I / NSCL-I-HC/ES II / NSCL-I-HC/AS I / NSCL-I-HC/11766 — ModuFix replacement

Adaption: NS I head load / NS II shoulder load
Clamping: Hydraulic (manual optional)
Alignment: Tx (horizontal), Ty optional on ES models

Clamping

WILA · New Standard Pro

New Standard Pro Self-Locking Clamping (NSCL-I-SL)

Pneumatic Self-Locking Clamping

NSCL-I-SL/UPB / NSCL-I-SL/ES I / NSCL-I-SL/ES II / NSCL-I-SL/AS I

Adaption: NS I head load / NS II shoulder load
Clamping: Pneumatic Self-Locking
Safety: Safety-Click integrated (<= 12.5 kg)

Clamping

WILA · American Style

American Style Clamping (ASCL-I-HC)

Hydraulic / Manual Clamping

ASCL-I-HC/UPB / ASCL-I-HC/AS I / ASCL-I-HC/ES II / ASCL-I-HC-TY/ES II — with Ty-alignment

Adaption: AS I / AS II shoulder load
Clamping: Hydraulic or Manual/Mechanical
Max load shoulders: 230 t/m (77 t/ft)

Clamping

WILA · Components

Hydraulic Power Packs (HM10–HM13)

Hydraulic Power Pack

HM10-400-H / HM10-400-H-R / HM10-400-C / HM11-460/230-H (dual voltage) / HM11-230/460-H-R (dual voltage) / HM12-460/230 (dual voltage) / HM13-400

Connection: Ø10, one 2.5 m hose supplied
Use with: Clamping / Crowning / Bottom Tool Holders / A3 bars
Optional: Extra 2.5 m hydraulic hose

Crowning

WILA · New Standard Premium

New Standard Premium Crowning (NSCR-II-HC)

CNC Crowning / Bottom Tool Holder

NSCR-II-HC-CNC/UPB

Clamping: Hydraulic (manual optional)
Alignment: Tx + Ty
Feature: V-Lock self-seating for V <= 60 mm

Crowning

WILA · New Standard HD Premium

New Standard HD Premium Crowning (NSCR-HD-II-HC)

Heavy Duty CNC Crowning

NSCR-HD-II-HC-150-CNC/UPB / NSCR-HD-II-HC-250-CNC/UPB

Adaption: NS V / NS VI (V-Lock) shoulder load
Drive: CNC motor (<=4000 kg) or hydraulic (>4000 kg)
Guards: E2M

Crowning

WILA · New Standard Pro

New Standard Pro Crowning (NSCR-I) + CRM7

CNC / CRM7 Crowning

NSCR-I-HC-CNC/UPB / NSCR-I-SL-CNC/UPB

Adaption: NS V / NS VI (V-Lock) shoulder load
CRM7 max length: 4300 mm (14 ft)
Alignment: Tx + Ty

Crowning

WILA · New Standard HD Pro

New Standard HD Pro Crowning (NSCR-HD-I-HC)

Heavy Duty CNC Crowning

NSCR-HD-I-HC-150-CNC/UPB / NSCR-HD-I-HC-250-CNC/UPB

Adaption: NS V / NS VI (V-Lock) shoulder load
Drive: CNC motor (<=4000 kg) or hydraulic (>4000 kg)
Guards: E2M

Crowning

WILA · Custom Style

Custom Style Crowning (CSCR)

Customized Crowning

CSCR-Q / CSCR-E-WIDE

Max length supplied: 15 m (50 ft)
Max width supplied: 600 mm (24")
Max tool weight supplied: 16000 kg (36000 lbs)

Crowning

WILA · Crowning Accessories

Wave Wedges

Manual Wedge Crowning

Wave Wedges — manual crowning set

Purpose: Parallelism / deflection compensation
Note: Configured to machine length; contact WILA

New Standard Premium Bottom Tool Holder (OB-II-HC)

Tool Holders

WILA · New Standard Premium

New Standard Premium Bottom Tool Holder (OB-II-HC)

Hydraulic Bottom Tool Holder

OB-II-HC/UPB / OB-II-HC-TY/UPB

Adaption: NS V / NS VI (V-Lock) shoulder load
Clamping: Hydraulic (manual optional)
Hole Pattern: UPB-II (ES IV / B2 / B3 optional)

New Standard HD Premium Bottom Tool Holder (OB-HD-II-HC)

Tool Holders

WILA · New Standard HD Premium

New Standard HD Premium Bottom Tool Holder (OB-HD-II-HC)

Heavy Duty Bottom Tool Holder

OB-HD-II-HC/UPB / OB-HD-II-HC-TY/UPB

Adaption: NS V / NS VI (V-Lock) shoulder load
Hole Pattern: UPB-VI (B2 optional)
Guards: E2M

New Standard Premium Self-Locking Bottom Tool Holder (OB-II-SL)

Tool Holders

WILA · New Standard Premium

New Standard Premium Self-Locking Bottom Tool Holder (OB-II-SL)

Pneumatic Bottom Tool Holder

OB-II-SL/UPB

Adaption: NS V / NS VI (V-Lock) shoulder load
Hole Pattern: UPB-VIII (B2/B3 optional)
Alignment: Tx

New Standard Pro Bottom Tool Holder (OB-I-HC)

Tool Holders

WILA · New Standard Pro

New Standard Pro Bottom Tool Holder (OB-I-HC)

Hydraulic Bottom Tool Holder

OB-I-HC/UPB / OB-I-HC-TY/UPB / OB-I-SL/UPB — Self-Locking

Adaption: NS V / NS VI (V-Lock) shoulder load
Hole Pattern: UPB-II (ES IV / B2 / B3 optional)
Clamping: Hydraulic / manual / pneumatic Self-Locking

New Standard HD Pro Bottom Tool Holder (OB-HD-I-HC)

Tool Holders

WILA · New Standard HD Pro

New Standard HD Pro Bottom Tool Holder (OB-HD-I-HC)

Heavy Duty Bottom Tool Holder

OB-HD-I-HC/UPB / OB-HD-I-HC-TY/UPB

Adaption: NS V / NS VI (V-Lock) shoulder load
Hole Pattern: UPB-VI (B2 optional)
Guards: E2M

Tool Holders

WILA · Custom Style

Custom Style Bottom Tool Holders (OB-953 / OB-958)

European Style Adaptor Holder

OB-958 / OB-953 — Manual Clamping

Adaption: NS V / NS VI (V-Lock) shoulder load
Purpose: European Style / single-V tool compatibility

American Style Extenders (THU-801 / THU-802)

Tool Holders

WILA · American Style

American Style Extenders (THU-801 / THU-802)

Bottom Tool Holder Extender

THU-801/1 / THU-802/1

Adaption: American Style to European Style
V-Lock: NS VI shoulder load

Punches

WILA · New Standard Premium

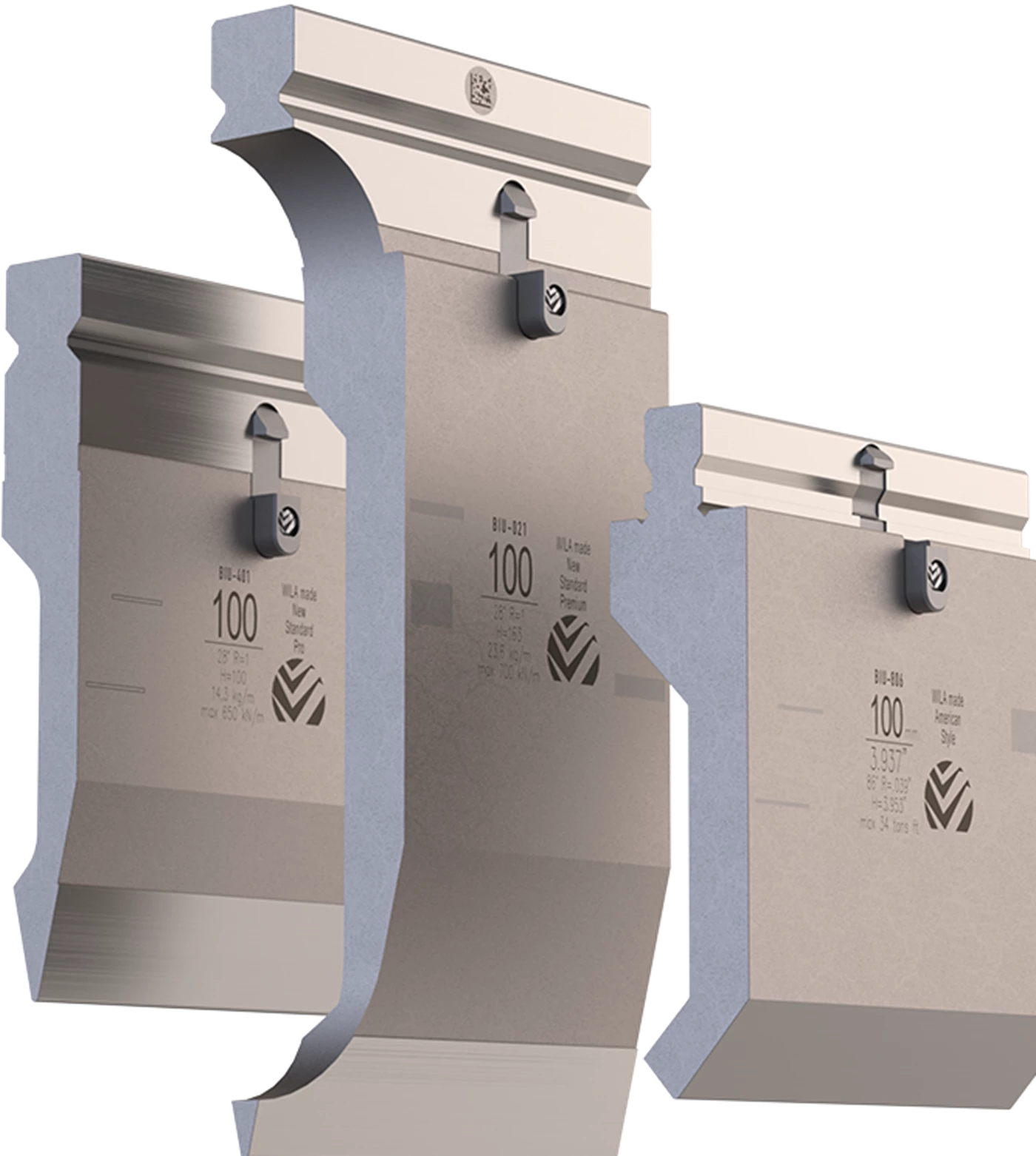

New Standard Premium Top Tools (BIU)

Standard Punch

H=98 (BIU-001 to BIU-004) / H=120 (BIU-011 to BIU-016) / H=163 (BIU-021 to BIU-029, BIU-2xx) / H=200 (BIU-031 to BIU-038, BIU-2xx)

Adaption: NS I head load / NS II shoulder load
Hardening: CNC-Deephardened 56–60 HRc
Lengths: 515 mm / 550 mm sectioned / 200 mm / 255 mm segments

Punches

WILA · New Standard Premium

New Standard Premium Gooseneck Punches

Gooseneck

Gooseneck — standard clearance / Large Gooseneck — E2M

Adaption: NS I head load / NS II shoulder load
Hardening: CNC-Deephardened 56–60 HRc
Lengths: 515 mm / segmented

Punches

WILA · New Standard Premium

New Standard Premium Acute Punches

Acute

28° acute (BIU-021 / BIU-031 family) / 30° acute

Adaption: NS I head load / NS II shoulder load
Hardening: CNC-Deephardened 56–60 HRc
Lengths: 515 mm / 550 mm sectioned / segments

Punches

WILA · New Standard Premium

New Standard Premium Hemming Punches (BIU-041 / BIU-051)

Hemming Punch

BIU-051 (+ OZU-083) / BIU-041 (+ DDU-003 / OZU-384)

Adaption: NS I head load
Use: Hemming / Dutch bending combinations
Lengths: 515 mm / segmented

Punches

WILA · New Standard Pro

New Standard Pro Top Tools (BIU)

Standard Punch

Standard profiles (28°–90°)

Adaption: NS I head load / NS II shoulder load
Hardening: CNC-Deephardened 56–60 HRc
Lengths: 515 mm / 550 mm sectioned / 200 mm segments

Punches

WILA · American Style

American Style Top Tools (BIU-8xx)

Standard Punch

Standard profiles (BIU-801 to BIU-885)

Lengths: 20" / 18.5" sectioned / 8" segments
Hardening: CNC-Deephardened
Safety: Safety-Click / Safety-Pin

Punches

WILA · American Vintage

American Vintage Top Tools (BIU-9xx)

Standard Punch

BIU-904 (28°) / BIU-908 (60°) / BIU-918 (28°)

Adaption: AS II shoulder load
Lengths: 20" / 18.5" sectioned / 8" segments
Hardening: CNC-Deephardened

Dies

WILA · New Standard Premium

New Standard Premium V-Dies (OZU)

Single-V Die

V=6 mm — 22 Ga / V=8 mm — 20 Ga / V=10 mm — 18 Ga / V=12 mm — 16 Ga / V=16 / 20 / 24 mm / V=30 / 40 / 50 / 60 mm

Adaption: NS VI shoulder load (V-Lock)
Hardening: CNC-Deephardened 56–60 HRc
Feature: V-Lock self-seating (V <= 60 mm)

Dies

WILA · New Standard Pro

New Standard Pro V-Dies (OZU)

Single-V Die

Small V (6–16 mm) / Large V (20–60 mm)

Adaption: NS VI shoulder load (V-Lock)
Hardening: CNC-Deephardened
Lengths: 515 mm / segmented

Dies

WILA · American Style

American Style V-Dies (OZU-8xx)

Single-V Die

V=6 mm — 22 Ga (OZU-801) / V=8 mm — 20 Ga (OZU-802) / V=10 mm — 18 Ga (OZU-803) / V=16 mm — 14 Ga (OZU-824)

Adaption: NS VI shoulder load (V-Lock)
Lengths: 515 mm / 550 mm sectioned / inch segments
Hardening: CNC-Deephardened

Dies

WILA · Radius Tooling

Radius Tool Holders & Tools (HU / RU)

Radius Bending

HU Radius Holder + RU inserts — non-hardened / HU Radius Holder + RU inserts — CNC-Deephardened

Purpose: Large-radius / custom-radius forming
Working height: Dependent on radius tools used

Adjustable

WILA · Custom Style

Multi-V-MATIC (MVM Type I.1)

Automatically Adjustable Bottom Tool

MVM I.1 — 1785 mm (6 ft) / MVM I.1 — 2380 mm (8 ft) / MVM I.1 — 3060 mm (10 ft) / MVM I.1 — 3655 mm (12 ft) / MVM I.1 — 4250 mm (14 ft) / MVM I.1 — 6120 mm (20 ft)

Drive: CNC motor (manual + digital read-out optional)
Hardening: CNC-Deephardened radii
Doubles as: Holder for OZU tools (13 mm adaption)

Adjustable

WILA · Custom Style

Multi-V

Manually Adjustable Bottom Tool

Model B / Model D / Model E / Model F

Adjustment: Manual spacer bars + set screws
Rollers: Hardened low-friction (cuts force 10–30%)
Lengths: 500–1050 mm, combinable to any length

Flattening & Hemming

WILA · New Standard Pro & American Style

Spring-Action Flattening Tools (DDU)

Spring-Action Hemming

DDU-001 — V=6 mm / DDU-002 — V=10 mm / DDU-004 — V=12 mm / DDU-003 — roller flattening bottom tool

Adaption: NS I head load / NS VI (V-Lock)
Use: Pre-bend + hem thin sheet
Pair with: 28°/30° top tools

DD Hydraulic Dutch Bending Tools (DD-005 / DD-009)

Flattening & Hemming

WILA · Custom Style

DD Hydraulic Dutch Bending Tools (DD-005 / DD-009)

Hydraulic Flattening

DD-005 — manual clamping / DD-005 HI — hydraulic clamping / DD-009 — manual clamping + hardened inserts / DD-009 HI — hydraulic clamping + hardened insert

Lifting: Hydraulic
Power pack: Modified 90-bar Hydraulic Power Pack
Mounting: Bottom tang or bolt-down to lower beam

Hemming Combinations (BIU-041 / OZU-384, BIU-051 / OZU-083)

Flattening & Hemming

WILA · New Standard Premium

Hemming Combinations (BIU-041 / OZU-384, BIU-051 / OZU-083)

Pre-Bend + Flatten Set

BIU-041 + OZU-384 / BIU-051 + OZU-083

Adaption: NS I head load / NS VI (V-Lock)
Lengths: 515 mm / segmented

Automation & ATC

WILA · Automatic Tool Change (ATC)

ATC Gripper (ATC-G7)

Robotic Tool Change

ATC-G7 Gripper

System: Automatic Tool Change (ATC)
Requires: WILA ATC tooling (ATC Adaptor)
Optional: TIPS ID-tag

Automation & ATC

WILA · Automatic Tool Change (ATC)

ATC Adaptors, Docking Station & Pins

ATC Tooling / Storage

ATC-Adaptor BIU (top tools) / ATC-Adaptor OZU (bottom tools) / Docking Station / Set of 2 Docking Pins

System: ATC-G7 automated loading/unloading
Retrofit: Placeable in new and existing BIU/OZU tools

Automation & ATC

WILA · Components

Press Brake Productivity Cabinet

Tool Storage System

Standard cabinet (1 shallow + 5× 75 mm drawers) / Bottom plate 377487 / Bottom plate 22086 / Bottom plate 22084

Adjustability: Drawer spacing in ~25 mm steps
Mobility: Forklift / pallet-truck base
Note: Additional arrangements on request

Automation & ATC

WILA · Smart Tooling

Smart Tool Locator (STL)

LED Tool-Positioning Ruler

Smart Tool Locator (STL)

Category: Smart Tooling / Industry 4.0

TIPS — Tooling Identification & Positioning System

Automation & ATC

WILA · Smart Tooling

TIPS — Tooling Identification & Positioning System

Smart Tooling / Industry 4.0

TIPS ID-tag + reader system

Category: Industry 4.0 smart tooling

Accessories

WILA · Non-Marking

Adiprene Non-Marking Inserts (K-001/5)

Non-Marking Insert

K-001/5 — 85 Shore A / K-001/5 — 95 Shore A

Benefit: No scratches; no post-processing
Material: Adiprene polyurethane

Protective Foil & Cloth (K-003 / K-004 / K-005)

Accessories

WILA · Non-Marking

Protective Foil & Cloth (K-003 / K-004 / K-005)

Non-Marking Foil / Cloth

K-003 — protective foil / K-004 — protective foil / K-005/120 & K-005/240 — protective cloth

Benefit: No scratches; no post-processing
Clamp with: Magnet clamp set (K-003/4/5 clamping system)

Magnet Clamp Set (foil/cloth clamping system)

Accessories

WILA · Non-Marking

Magnet Clamp Set (foil/cloth clamping system)

Foil/Cloth Clamping

Clamping set — 6 magnets + 6 straps

Purpose: Secure non-marking foil/cloth

Accessories

WILA · Care

Press Brake Productivity Wax

Tool Care Spray

Press Brake Productivity Wax — spray

Purpose: Tool cleaning + corrosion protection

Accessories

WILA · Coatings

OZU-ZN Coating (galvanized material)

Anti-Zinc Coating

OZU-ZN coated bottom tools

Availability: Optional on New Standard / American Style tools

Accessories

WILA · Coatings

EnduraBend Coating

Wear-Resistant Coating

EnduraBend coated tooling

Availability: Optional coating; contact WILA

European Style & 4-Way Die Clamp Sets (D1/D2, 4-Way)

Accessories

WILA · Components

European Style & 4-Way Die Clamp Sets (D1/D2, 4-Way)

Crowning Clamp Set

D1/D2 set — European Style 60 mm / 4-Way Die Clamp Set

Use with: WILA crowning systems

Punches

Eurostamp · Amada / European Style

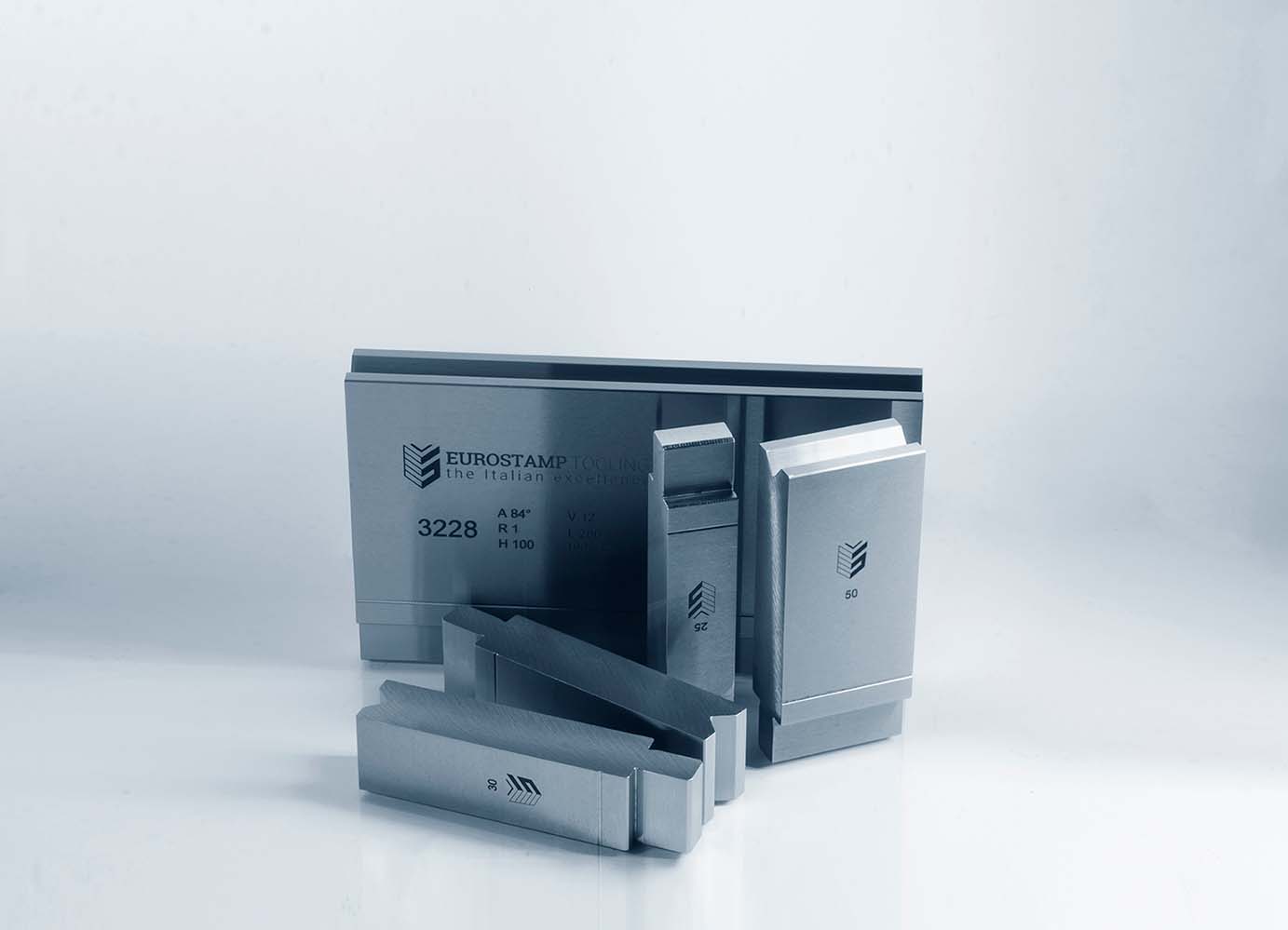

Amada-Style Straight Punches

Straight Punch

α=88° · R=0.031" (0.8mm) · H=2.6" (66.65mm) / α=45° · R=0.020" (0.5mm) · H=2.6" (66.4mm) / α=60° · R=0.031" (0.8mm) · H=2.6" (67mm) / α=85° · R=0.118" (3mm) · H=2.6" (65.5mm) / α=75° · R=0.031" (0.8mm) · H=2.7" (67.6mm) · CrMo / α=75° · R=0.031" (0.8mm) · H=4.1" (105mm) · CrMo

Style: Straight Punch
System: Amada / European Style
Angles: 45° / 60° / 75° / 85° / 88°

Punches

Eurostamp · Amada / European Style

Amada-Style Gooseneck Punches

Gooseneck Punch

α=88° · R=0.031" (0.8mm) · H=3.5" (89.65mm) / α=88° · R=0.031" (0.8mm) · H=4.1" (104.65mm) / α=88° · R=0.031" (0.8mm) · H=5.7" (145mm) / α=88° · R=0.031" (0.8mm) · H=6.5" (165mm) / α=60° · R=0.031" (0.8mm) · H=3.3" (85mm) · CrMo / α=85° · R=0.031" (0.8mm) · H=4.5" (115mm) · CrMo

Style: Gooseneck Punch
System: Amada / European Style
Body Heights: 85 – 165 mm

Punches

Eurostamp · Amada / European Style

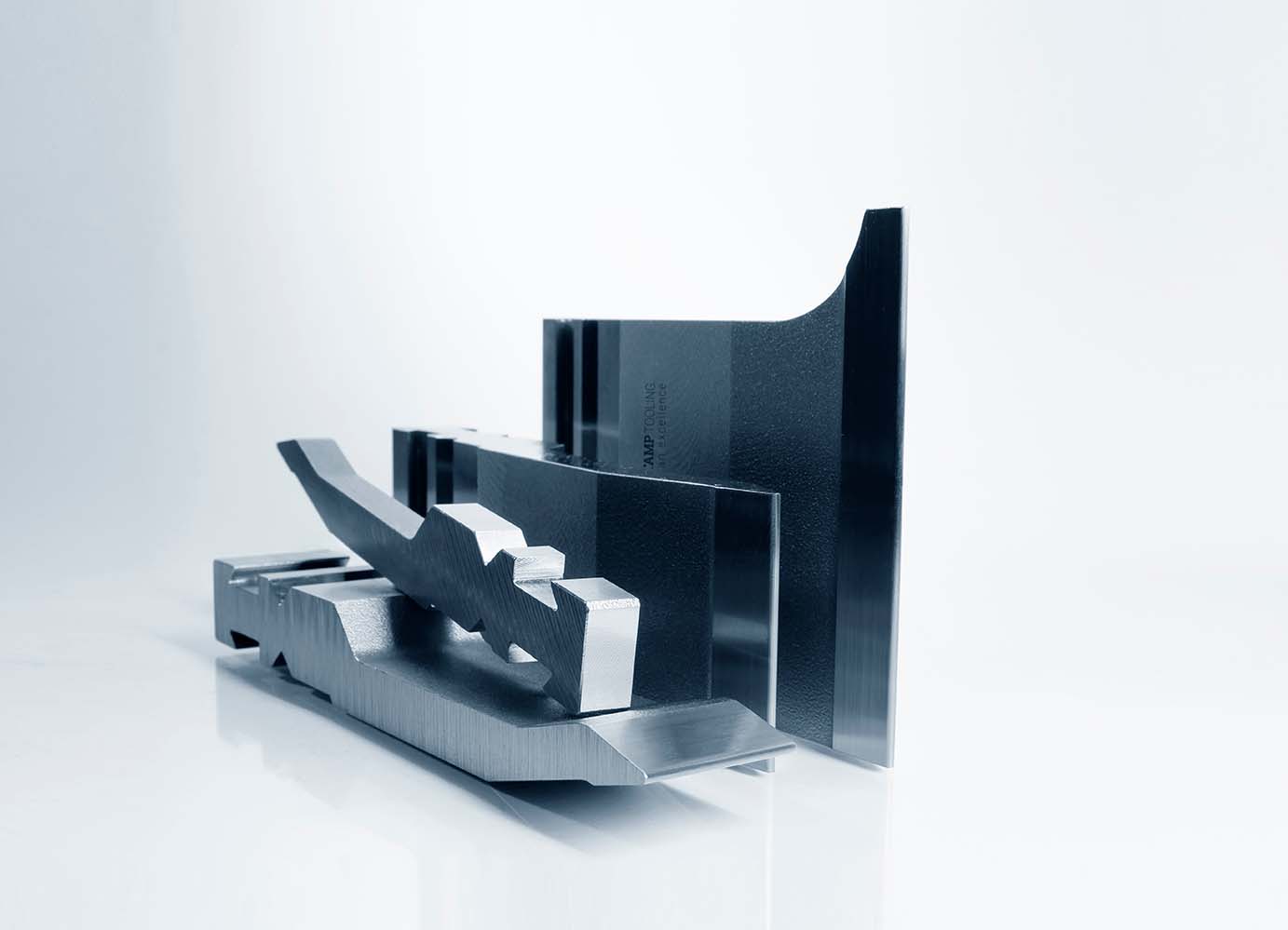

Amada-Style High Gooseneck Punches

High Gooseneck Punch

α=88° · R=0.031" (0.8mm) · H=7.9" (200mm) · C45 / α=88° · R=0.118" (3mm) · H=7.8" (199mm) · C45

Style: High Gooseneck Punch
System: Amada / European Style
Body Height: 200 mm

Punches

Eurostamp · Amada / European Style

Amada-Style Double Gooseneck Punches

Double Gooseneck Punch

α=88° · R=0.031" (0.8mm) · H=3.4" (86mm) / α=60° · R=0.031" (0.8mm) · H=4.5" (115mm)

Style: Double Gooseneck Punch
System: Amada / European Style
Lengths: 835 mm / 415 mm / Sectionalized 805 mm

Punches

Eurostamp · Amada / European Style

Amada-Style Reversed Gooseneck Punches

Reversed Gooseneck Punch

α=88° · R=0.031" (0.8mm) · H=2.6" (66.65mm) / α=88° · R=0.031" (0.8mm) · H=4.1" (104.65mm)

Style: Reversed Gooseneck Punch
System: Amada / European Style
Lengths: 835 mm / 415 mm / Sectionalized 805 mm

Punches

Eurostamp · Amada / European Style

Amada-Style Sash Punches

Sash Punch

α=88° · R=0.024" (0.6mm) · H=3.9" (99.4mm) / α=88° · R=0.010" (0.25mm) · H=3.9" (99.35mm)

Style: Sash Punch
System: Amada / European Style
Lengths: 835 mm / 415 mm / Sectionalized 805 mm

Punches

Eurostamp · Amada / European Style

Amada-Style Slim-Body Punches

Slim-Body Punch

α=88° · R=0.024" (0.6mm) · H=3.7" (94.4mm) · C45 / α=30° · R=0.024" (0.6mm) · H=5.5" (140mm) · C45 / α=88° · R=0.010" (0.25mm) · H=3.7" (94.35mm) · C45

Style: Slim-Body Punch
System: Amada / European Style
Lengths: 835 mm / 415 mm / Sectionalized 805 mm

Punches

Eurostamp · Amada / European Style

Amada-Style Thick-Material Punches

Thick-Material Punch

α=60° · R=0.236" (6mm) · H=2.6" (65mm) / α=60° · R=0.394" (10mm) · H=4.5" (115mm) / α=60° · R=0.315" (8mm) · H=7.9" (200mm)

Style: Thick-Material Punch
System: Amada / European Style
Radii: 6 – 10 mm

Punches

Eurostamp · Bystronic Style

Bystronic-Style Gooseneck Punches (R / RF-A)

Gooseneck Punch

α=85° · R=0.059" (1.5mm) · H=6.1" (155mm) · C45 · type R / α=88° · R=0.059" (1.5mm) · H=6.9" (175mm) · C45 · type RF-A / α=86° · R=0.059" (1.5mm) · H=9.8" (250mm) · CrMo · type R/RF-A

Style: Gooseneck Punch
System: Bystronic (R / RF-A tang)
Body Heights: 155 – 250 mm

Punches

Eurostamp · Bystronic Style

Bystronic-Style Straight Punches (R / RF-A)

Straight Punch

α=30° · R=0.039" (1mm) · H=6.1" (155mm) · C45 · type R / α=30° · R=0.039" (1mm) · H=9.8" (250mm) · CrMo · type R/RF-A / α=30° · R=0.118" (3mm) · H=9.8" (250mm) · CrMo · type R/RF-A

Style: Straight Punch
System: Bystronic (R / RF-A tang)
Lengths: 500 mm / Sectionalized 550 mm / 100 mm

Punches

Eurostamp · Trumpf-Wila Style

Trumpf-Wila-Style Gooseneck Punches

Gooseneck Punch

α=86° · R=0.031" (0.8mm) · H=7.7" (195mm) · CrMo / α=60° · R=0.031" (0.8mm) · H=7.7" (195mm) · CrMo / α=86° · R=0.059" (1.5mm) · H=7.9" (200mm) · CrMo

Style: Gooseneck Punch
System: Trumpf-Wila (with safety buttons)
Body Heights: 195 – 200 mm

Punches

Eurostamp · Trumpf-Wila Style

Trumpf-Wila-Style Straight & Sash Punches

Straight / Sash Punch

Sash · α=86° · R=0.024" (0.6mm) · H=7.7" (195mm) · CrMo / Straight · α=28° · R=0.118" (3mm) · H=7.7" (195mm) · CrMo / Straight · α=28° · R=0.039" (1mm) · H=7.7" (195mm) · CrMo

Style: Straight / Sash Punch
System: Trumpf-Wila (with safety buttons)
Lengths: 500 / 300 / 200 / 100 mm + Sectionalized 550 mm

Punches

Eurostamp · Wila-Trumpf Style

Wila-Trumpf-Style Gooseneck Punches

Gooseneck Punch

1323 (B-023) · α=86° · R=0.039" (1mm) · H=7.9" (200mm) · CrMo / 1324 (B-033) · α=86° · R=0.039" (1mm) · H=9.3" (237mm) · CrMo / 1328 (B-013) · α=86° · R=0.039" (1mm) · H=6.2" (157mm) · CrMo

Style: Gooseneck Punch
System: Wila-Trumpf (with buttons)
Lengths: 515 / 200 / 100 mm + Sectionalized 550 mm

Punches

Eurostamp · Wila-Trumpf Style

Wila-Trumpf-Style Straight (Relieved) Punches

Straight Relieved Punch

1325 (B-001) · α=28° · R=0.039" (1mm) · H=5.3" (135mm) · CrMo / 1326 (B-021) · α=28° · R=0.039" (1mm) · H=7.9" (200mm) · CrMo / 1332 (B-225) · α=80° · R=0.118" (3mm) · H=7.9" (200mm) · CrMo

Style: Straight Relieved Punch
System: Wila-Trumpf (with buttons)
Lengths: 515 / 200 / 100 mm + Sectionalized 550 mm

Dies

Eurostamp · Amada / European Style

Amada-Style Single-V Dies

Single-V Die

α=85° · V=32 · H=2.4" (60mm) / α=85° · V=63 · H=3.0" (75mm) / α=80° · V=100 · H=3.7" (95mm) / α=80° · V=160 · H=5.1" (130mm) / α=60° · V=80 · H=4.5" (115mm) / α=45° · V=80 · H=5.7" (145mm)

Style: Single-V Die
System: Amada / European Style
V-Openings: 32 – 160 mm (representative set of codes 2020–2089)

Dies

Eurostamp · Amada / European Style

Amada-Style 2-V Bolted Dies

2-V Bolted Die

α=88° · V=12/20 · H=1.0" (26mm) / α=88° · V=16/25 · H=1.0" (26mm) / α=60° · V=6/10 · H=1.0" (26mm) / α=60° · V=12/20 · H=1.0" (26mm)

Style: 2-V Bolted Die
System: Amada / European Style
Height: 26 mm (requires 2V support)

Dies

Eurostamp · Amada / European Style

Amada-Style Self-Centering 2-V Dies

Self-Centering 2-V Die

α=88° · V=6/10 · H=1.8" (46mm) / α=88° · V=16/25 · H=1.8" (46mm) / α=30° · V=8/12 · H=1.8" (46mm)

Style: Self-Centering 2-V Die
System: Amada / European Style
Height: 46 mm (requires self-centering rail 2058/2059)

Dies

Eurostamp · Amada / European Style

Amada-Style 4-V & Multi-V Dies

Multi-V Die

88°/85° · V=16/22/35/50 · H=2.4" (60mm) / α=60° · V=10/16/22/35 · H=2.4" (60mm) / α=85° · V=16/22/35/50 · H=2.4" (60mm)

Style: Multi-V Die
System: Amada / European Style
Lengths: 835 mm / 415 mm / Sectionalized 805 mm

Dies

Eurostamp · Amada / European Style

Amada-Style T-Shape Dies (H80)

T-Shape Die

α=88° · V=12 · H80 / α=85° · V=6 · H80 / α=60° · V=6 · H80 / α=45° · V=6 · H80 / α=30° · V=6 · H80

Style: T-Shape Die
System: Amada / European Style
Height: 80 mm

Dies

Eurostamp · Amada / European Style

Amada-Style T-Shape Dies (H120)

T-Shape Die

α=88° · V=12 · H120 / α=60° · V=6 · H120 / α=45° · V=6 · H120 / α=30° · V=6 · H120

Style: T-Shape Die
System: Amada / European Style
Height: 120 mm

Dies

Eurostamp · Amada / European Style

Amada-Style Die Inserts

Die Insert

α=88° · V=4 · H=2.4" (60mm) / α=88° · V=25 · H=2.4" (60mm) / α=30° · V=25 · H=2.6" (65mm) / α=60° · V=25 · H=2.4" (60mm)

Style: Die Insert
System: Amada / European Style
Height: 60 mm (requires insert holder 3173)

Dies

Eurostamp · Amada / European Style

Amada-Style Large Single-V Die

Large Single-V Die

α=70° · V=220 · H=7.5" (190mm)

Style: Large Single-V Die
System: Amada / European Style
V-Opening: 220 mm

Dies

Eurostamp · Bystronic Style

Bystronic-Style Single-V Dies (H55)

Single-V Die

α=88° · V=10 · H55 · C45 / α=88° · V=24 · H55 · C45 / α=60° · V=60 · H=2.6" (65mm) · C45

Style: Single-V Die
System: Bystronic Style
Height: 55 – 65 mm

Dies

Eurostamp · Trumpf-Wila Style

Trumpf-Wila-Style Single-V Dies

Single-V Die

α=86° · V=6 · H=3.9" (100mm) · C45 / α=86° · V=50 · H=3.9" (100mm) · C45 / α=80° · V=100 · H=4.7" (120mm) · C45 / α=60° · V=120 · H=4.7" (120mm) · CrMo (V W120/60)

Style: Single-V Die
System: Trumpf-Wila Style
Height: 100 – 150 mm

Dies

Eurostamp · Wila-Trumpf Style

Wila-Trumpf-Style Single-V Dies

Single-V Die

3250 (O-021) · α=86° · V=6 · H=2.2" (55mm) · CrMo / 3270 (O321) · α=86° · V=6 · H=3.9" (100mm) · CrMo / 3286 (O-354) · α=30° · V=24 · H=3.9" (100mm) · CrMo

Style: Single-V Die
System: Wila-Trumpf Style
Height: 55 – 100 mm

Adjustable

Eurostamp · Amada / European Style

Roller Adjustable Dies (V24 – V400)

Roller Adjustable Die

V24 – V124 mm (code 3190) · lower adapter 9015/9018 / V60 – V180 mm (code 3191) · lower adapter 9016/9019 / V120 – V300 mm (code 3192) · lower adapter 9014 / V150 – V400 mm (code 3243) · lower adapter 9017

Style: Roller Adjustable Die
System: Amada / European base (roller adjustable)
Opening Ranges: V24–124 / V60–180 / V120–300 / V150–400 mm

Flattening & Hemming

Eurostamp · Amada / European Style

Amada-Style Flattening Blades

Flattening Blade

α=28° · R0.6 · H128 · 8mm thickness / α=24° · R0.6 · H128 · 10mm thickness / α=24° · R0.6 · H128 · 12mm thickness

Style: Flattening Blade
System: Amada / European Style
Thicknesses: 8 / 10 / 12 mm

Trumpf-Wila & Bystronic Flattening Blades

Flattening & Hemming

Eurostamp · Trumpf-Wila Style

Trumpf-Wila & Bystronic Flattening Blades

Flattening Blade

Trumpf-Wila · α=28° · 8mm · H=7.7" (195mm) · C45 / Trumpf-Wila · α=24° · 10mm · H=7.7" (195mm) · C45 / Bystronic RF-A · α=24° · 8mm · H=7.7" (195mm) · C45

Style: Flattening Blade
System: Trumpf-Wila / Bystronic RF-A
Thicknesses: 8 / 10 / 12 mm

Flattening & Hemming

Eurostamp · Amada / European Style

Amada-Style Hemming Dies

Hemming Die

α=35° · V=6 · H=4.0" (100.7mm) / α=26° · V=10 · H=5.3" (135mm) / α=26° · V=10 · H=5.3" (135mm) · Pneumatic (needs kit 4313) / α=30° · V=8 · H=4.3" (110mm)

Style: Hemming Die
System: Amada / European Style
Lengths: 835 mm / 415 mm

Bystronic / Trumpf-Wila & Amada Hemming Dies

Flattening & Hemming

Eurostamp · Bystronic Style

Bystronic / Trumpf-Wila & Amada Hemming Dies

Hemming Die

Bystronic-Trumpf-Wila · U=8.1 · R=0.039" (1mm) · H=3.9" (100mm) / Bystronic-Trumpf-Wila · U=10.1 · R=0.039" (1mm) · H=3.9" (100mm) / Amada · U=8.1 · R=0.039" (1mm) · H=3.1" (80mm)

Style: Hemming Die
System: Bystronic-Trumpf-Wila / Amada
Material: C45 tempered steel

Tool Holders

Eurostamp · Amada / European Style

Lower Die Holders (Amada / European)

Lower Die Holder

L=2100 mm / L=2600 mm / L=3100 mm / L=4100 mm / Modular lower adapter

Style: Lower Die Holder
System: Amada / European Style
Lengths: 2100 / 2600 / 3100 / 4100 mm + modular

Tool Holders

Eurostamp · Amada / European Style

Roller Adjustable Die Adapters

Adjustable Die Adapter

For 3190 (Amada tang) — code 9015 / For 3191 (Amada tang) — code 9016 / For 3192 — code 9014 / For 3243 — code 9017

Style: Adjustable Die Adapter
System: Amada / Trumpf-Beyeler-Wila tang (9018/9019)
Use: Required base for roller adjustable dies 3190–3243

Tool Holders

Eurostamp · Amada / European Style

Radius Insert Holders

Radius Insert Holder

Amada straight · H=67mm (code 1036) / Amada gooseneck · H115 (code 1090) / Bystronic R / RF-A · H=5.5" (140mm) (code 1239) / Trumpf · H=5.5" (140mm) (code 1240) / Weinbrenner · H=9.8" (250mm) (code 1305)

Style: Radius Insert Holder
Systems: Amada / Bystronic / Trumpf / Weinbrenner / EHT
Lengths: 830 mm / 410 mm

Tool Holders

Eurostamp · Amada / European Style

Joggle (Z) Insert Holders

Joggle Insert Holder

Amada / European (code 1150) / Bystronic R / RF-A (code 1198) / Trumpf / Wila (code 1242)

Style: Joggle Insert Holder
Systems: Amada / Bystronic / Trumpf-Wila
Lengths: 835 mm / 415 mm

Tool Holders

Eurostamp · Amada / European Style

2-V Die Supports & Insert Holders

2-V Die Support

2-V support · H=1.3" (34mm) (code 2018) / 2-V support · H=2.2" (55mm) (code 2019) / 2-V support · H=3.0" (75mm) (code 2035) / Die insert holder (code 3173)

Style: 2-V Die Support / Insert Holder
System: Amada / European Style
Lengths: 830 mm / 410 mm (835/415 on 3173)

Tool Holders

Eurostamp · Amada / European Style

Lower Style-Conversion Adapters

Lower Style Adapter

Beyeler-Trumpf → Amada/European · H=1.2" (30mm) (code 4301) / Beyeler-Trumpf → Amada/European · H=2.4" (60mm) (code 4302) / Amada → Beyeler-Trumpf w/ clamps · H=1.6" (40mm) (code 4303) / Beyeler-Trumpf → LVD · H=1.2" (30mm) (code 4305)

Style: Lower Style Adapter
Conversions: Beyeler-Trumpf ↔ Amada / LVD
Lengths: 1000 / 500 mm (835/415 on 4303/4304)

Tool Holders

Eurostamp · Amada / European Style

Intermediates & Extensions

Intermediate / Extension

Intermediate · H=3.9" (100mm) · thk 27 · adjustable (code 4221) / Intermediate · H=4.7" (120mm) · thk 27 · adjustable (code 4222) / Intermediate · H=5.9" (150mm) · thk 27 · adjustable (code 4223) / Heavy-duty CrMo · H=4.7" (120mm) · thk 40 · adjustable (code 4411) / Short extension (no wedge) · H=3.9" (100mm) · thk 27 (code 4226) / Trumpf-Wila extension · H100 · with safety pins (code 4361)

Style: Intermediate / Extension
System: Amada / European (4361 Trumpf-Wila)
Heights: 100 / 120 / 150 mm

Accessories

Eurostamp · Amada / European Style

Radius Inserts (Round Bars)

Radius Insert

R=0.276" (7mm) (code 1100) / R=0.394" (10mm) (code 1037) / R=0.787" (20mm) (code 1040) / R=1.181" (30mm) (code 1042) / R=1.969" (50mm) (code 1118)

Style: Radius Insert
System: Amada / European (requires radius holder)
Radii: R7 – R50 mm

Accessories

Eurostamp · Amada / European Style

Small Radius Inserts

Small Radius Insert

R=0.118" (3mm) (code 1180) / R=0.197" (5mm) (code 1184) / R=0.256" (6.5mm) (code 1187)

Style: Small Radius Insert
System: Amada / European Style
Radii: R3 – R6.5 mm

Accessories

Eurostamp · Amada / European Style

Joggle (Z) Inserts

Joggle Insert

Z=1 · α=160° (code 1130) / Z=3 · α=90° (code 1134) / Z=8 · α=90° (code 1144) / Z=12 · α=90° (code 1148) / Z=15 · α=90° (code 1280)

Style: Joggle (Z) Insert
System: Amada / European (requires joggle holder)
Z-Heights: Z1 – Z15

Accessories

Eurostamp · Amada / European Style

Polyurethane & Nylon Inserts

Marking-Free Insert

Polyurethane insert 25x25 (code 2101) / Polyurethane insert 50x50 (code 2102) / Polyurethane insert holder 25x25 (code 2036) / Nylon insert 20x24 (code 2112) / Nylon insert holder 20x24 · H=2.9" (74mm) (code 2109)

Style: Marking-Free Insert
System: Amada / European Style
Materials: Polyurethane / Nylon

Accessories

Eurostamp · Amada / European Style

Safety Clamps & Clamping Kits

Safety Clamp

Safety clamp, top handle + fixing screws · H=52mm (code 5011) / Safety clamp, front screws · H=52mm (code 5012) / Safety clamp, foldaway handle (code 4009) / Safety clamp w/ polyurethane insert (code 4199) / Simple clamp, no safety tang · H=50mm (code 4016) / Double clamping kit + safety rear clamp 4020 (code 4032)

Style: Safety Clamp
System: Amada / European Style
Unit Length: 150 mm (75 mm short options)

Gauges, Reference Squares & Back-Gauge Arms

Accessories

Eurostamp · Amada / European Style

Gauges, Reference Squares & Back-Gauge Arms

Gauge / Reference

Digital gauge for chamfers & radii (code 4384) / Manual protractor (code 4883) / Fixed reference square (code 4306) / Adjustable reference square (code 4307) / Magnetic squaring arm — left / right (codes 4318 / 4319) / Front support arm + micrometric trip stop (codes 4010 / 4012)

Style: Gauge / Reference
System: Amada / European Style
Includes: Digital gauge, protractor, squares, squaring arms, back-gauge arm

Accessories

Eurostamp · Amada / European Style

Upper Style-Conversion Adapters

Upper Style Adapter

LVD (S) → Amada/European (code 4143) / Trumpf-Wila → Amada/European (code 4191) / Beyeler RF-A → Amada/European (code 4214) / Weinbrenner → Amada/European (code 4215) / EHT → Amada/European (code 4217) / Amada/European → Trumpf-Wila · H67 (code 4362)

Style: Upper Style Adapter
Conversions: LVD / Trumpf-Wila / Beyeler / Weinbrenner / EHT / Durmazlar / Darley / Baykal / Colgar → Amada
Unit Length: 150 mm

Accessories

Eurostamp · Amada / European Style

Protective Film, Cloth & Pneumatic Kit

Consumable / Kit

Polyurethane protective film · 33m · 0.5mm (code 4308) / Polyurethane protective film · 33m · 0.8mm (code 4314) / Protective cloth · max 3mm (code 4379) / Protective cloth · max 6mm (code 4380) / Pneumatic hemming tools kit (code 4313)

Style: Consumable / Kit
System: Amada / European Style
Includes: Protective film, protective cloth, film supports, pneumatic hemming kit

Punches

Eurostamp · American Precision Ground

American Precision Ground Punches

American Precision Punch

AMAPG-28 (acute gooseneck) / AMAP30 (acute punch) / AMGP716-88 (gooseneck, 88°) / AMP106-88 (standard punch, 88°) / AMGP12-88 (gooseneck, 88°) / AMGP12-85 (gooseneck, 85°)

Style: American Precision Punch
Series: American Precision Ground
System: American Style

Dies

Eurostamp · American Precision Ground

American Precision Ground Dies

American Precision Die

AMAD38-30 (3/8" V, 30°) / AMAD12-30 (1/2" V, 30°) / AMAD58-30 (5/8" V, 30°) / AMAD78-34 (7/8" V, 34°) / AMD38-88 (3/8" V, 88°) / AMD58-88 (5/8" V, 88°) / AMD34-88 (3/4" V, 88°)

Style: American Precision Die
Series: American Precision Ground
System: American Style

Loading catalog...

Don't see what you need?

Wilson Tool, WILA, and Eurostamp each manufacture thousands of standard and custom tooling configurations. As an authorized distributor, Forge can source any item across the full range from every brand we carry.

Request a Quote

Press BrakeTooling

3.75" Acute Block Punch

5.75" Acute Gooseneck Punch

3.75" Arrow Punch

3.75" Large Gooseneck Punch

5.75" Large Gooseneck Punch

3.75" Sash Gooseneck Punch

5.75" Sash Gooseneck Punch

8.75" Sash Gooseneck Punch

8.75" Acute Punch

8.75" Large Gooseneck Punch

3.75" Block Punch

5.75" Block Punch

Model 1 Solid Die – 9.84"

Model 1 Solid Die – 19.68"

Model 2 Solid Die – 9.84"

Model 3 Solid Die – 3.94"

Model 3 Solid Die – 9.84"

New Standard Premium Clamping (NSCL-II-HC)

New Standard HD Premium Clamping (NSCL-HD-II-HC)

New Standard Premium Self-Locking Clamping (NSCL-II-SL)

New Standard Pro Clamping (NSCL-I-HC)

New Standard Pro Self-Locking Clamping (NSCL-I-SL)

American Style Clamping (ASCL-I-HC)

Hydraulic Power Packs (HM10–HM13)

New Standard Premium Crowning (NSCR-II-HC)

New Standard HD Premium Crowning (NSCR-HD-II-HC)

New Standard Pro Crowning (NSCR-I) + CRM7

New Standard HD Pro Crowning (NSCR-HD-I-HC)

Custom Style Crowning (CSCR)

Wave Wedges

New Standard Premium Bottom Tool Holder (OB-II-HC)

New Standard HD Premium Bottom Tool Holder (OB-HD-II-HC)

New Standard Premium Self-Locking Bottom Tool Holder (OB-II-SL)

New Standard Pro Bottom Tool Holder (OB-I-HC)

New Standard HD Pro Bottom Tool Holder (OB-HD-I-HC)

Custom Style Bottom Tool Holders (OB-953 / OB-958)

American Style Extenders (THU-801 / THU-802)

New Standard Premium Top Tools (BIU)

New Standard Premium Gooseneck Punches

New Standard Premium Acute Punches

New Standard Premium Hemming Punches (BIU-041 / BIU-051)

New Standard Pro Top Tools (BIU)

American Style Top Tools (BIU-8xx)

American Vintage Top Tools (BIU-9xx)

New Standard Premium V-Dies (OZU)

New Standard Pro V-Dies (OZU)

American Style V-Dies (OZU-8xx)

Radius Tool Holders & Tools (HU / RU)

Multi-V-MATIC (MVM Type I.1)

Multi-V

Spring-Action Flattening Tools (DDU)

DD Hydraulic Dutch Bending Tools (DD-005 / DD-009)

Hemming Combinations (BIU-041 / OZU-384, BIU-051 / OZU-083)

ATC Gripper (ATC-G7)

ATC Adaptors, Docking Station & Pins

Press Brake Productivity Cabinet

Smart Tool Locator (STL)

TIPS — Tooling Identification & Positioning System

Adiprene Non-Marking Inserts (K-001/5)

Protective Foil & Cloth (K-003 / K-004 / K-005)

Magnet Clamp Set (foil/cloth clamping system)

Press Brake Productivity Wax

OZU-ZN Coating (galvanized material)

EnduraBend Coating

European Style & 4-Way Die Clamp Sets (D1/D2, 4-Way)

Amada-Style Straight Punches

Amada-Style Gooseneck Punches

Amada-Style High Gooseneck Punches

Amada-Style Double Gooseneck Punches

Amada-Style Reversed Gooseneck Punches

Amada-Style Sash Punches

Amada-Style Slim-Body Punches

Amada-Style Thick-Material Punches

Bystronic-Style Gooseneck Punches (R / RF-A)

Bystronic-Style Straight Punches (R / RF-A)

Trumpf-Wila-Style Gooseneck Punches

Trumpf-Wila-Style Straight & Sash Punches

Wila-Trumpf-Style Gooseneck Punches

Wila-Trumpf-Style Straight (Relieved) Punches

Press Brake
Tooling
