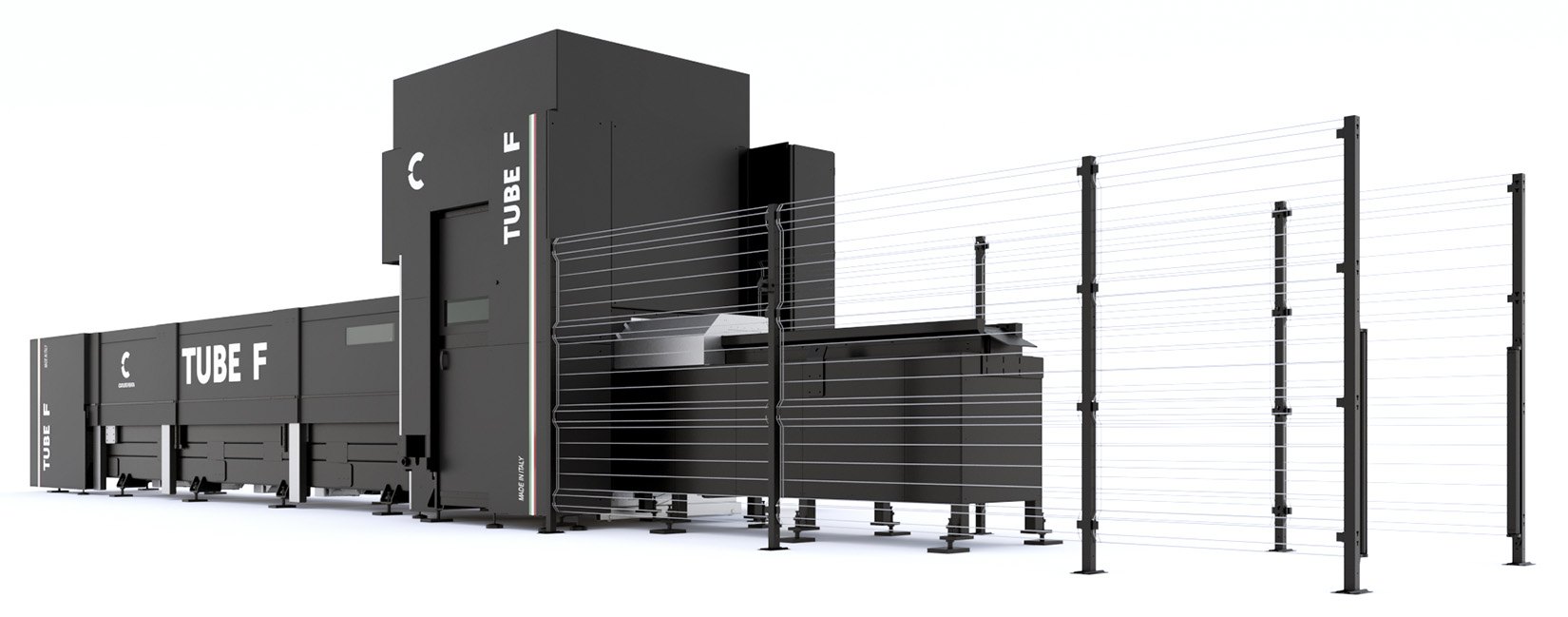

TUBE, Fiber Tube Cutting System
Finished tube parts in a single cycle
Round / square / rect / open up to 12 in
- ✓One cycle = saw + deburr + notch + drill + tap
- ✓Smart Weld auto-orients the cut to the seam
- ✓Smart Mandrel adds flow drilling + tapping to M12
Round TubeSquare TubeRectangular TubeOpen Profile
Overview
Cut a finished tube part in one cycle, no second op. Round, square, rectangular, and open profiles up to 12 in. The CNC software runs the whole job, from bar load to finished-part unload, so you stop moving parts through three or four stations.
Specifications
Bar Loading
Loadable6,500 / 9,000 / 12,000 mm
Unloadable3,000 mm
Source
TypeIPG Fiber, NEMA 12
Power1–6 kW standard · expandable to 8 kW
Materials
CutsMild · stainless · alloy steel · aluminum · brass · copper
Available Configurations
| Model | Round | Square / Rectangle | Wall Thickness | Max Bar Weight |
|---|---|---|---|---|
| TL150 | 0.59–6.00 in | 0.59–6.00 in | Up to 0.31 in | 27 lbs/ft |
| TL220 | 0.79–8.66 in | Up to 8.66 in | Up to 0.39 in | 27 lbs/ft |
| TL305 | 0.79–12.01 in | Up to 8.66 in | Up to 0.39 in | 27 lbs/ft |
Additional configurations available on request.
Key Features
- ›Electro-welded frame + linear motor technology
- ›Fully enclosed cutting head, sealed optical unit
- ›Smart Bevel Pro option, beveling to 45°
- ›Smart Weld, identifies internal/external weld seams in real time
- ›Smart Mandrel, flow drilling + tapping to M12 with auto tool change
- ›Smart Cleaning, round-tube scrap collection
- ›Tube Size Detection, optical measurement sensors
- ›Camera Monitoring, remote visibility into operations
- ›Step or bundle automatic loaders
