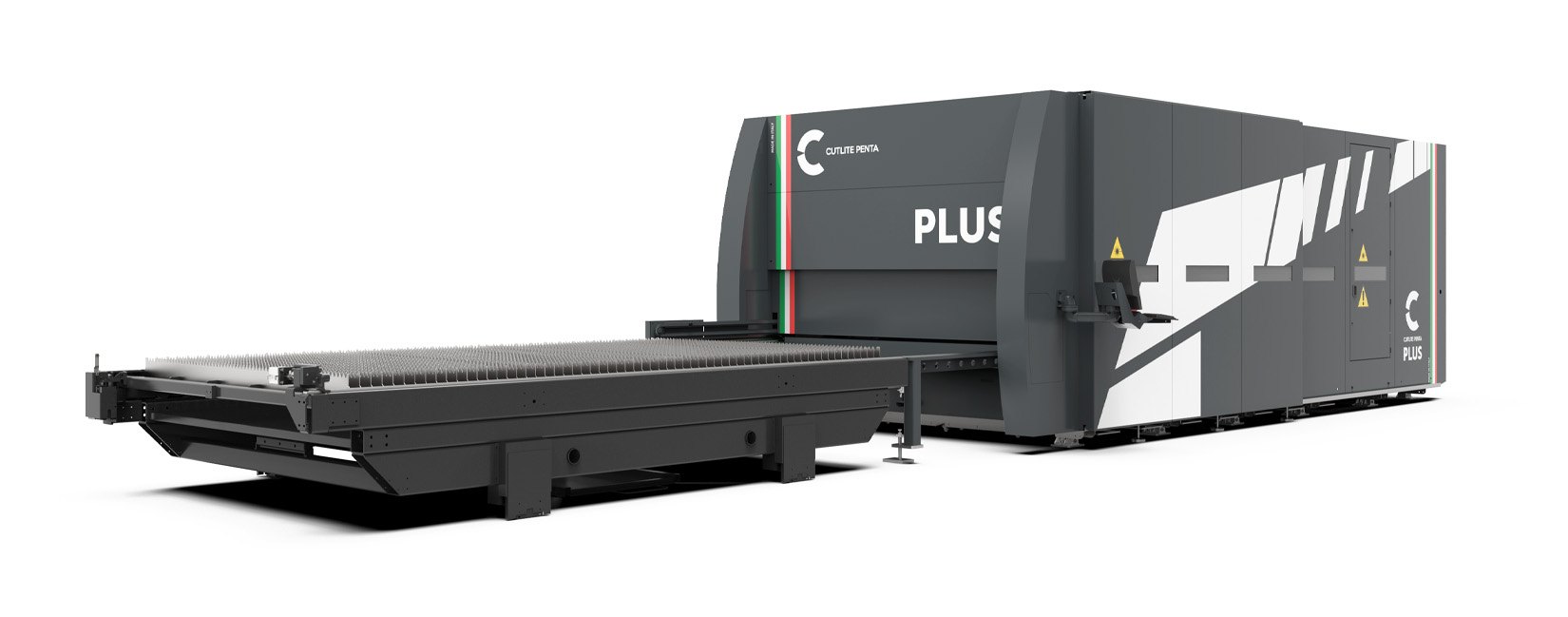

PLUS BEVEL / PLUS EVO

V, Y, X, K bevels up to ±45°, weld prep in one operation

10×5 ft to 59.4×10 ft

✓Cut weld-prep angles directly, no second-op grinding
✓Two-level pallet exchange runs while loading
✓EVO 3 with absolute encoders on B/C axes

Sheet MetalPlateWeld-Prep AnglesRobotic Welding Prep

Get More Information Manufacturer Page ↗

Overview

Cut weld-prep angles directly into the part and skip the second-op grinding. Designed for angled cuts from 1° to ±45°, it produces V (±), Y (±), X, and K geometries without giving up flat-cut quality, so parts go straight to the welding robot. 21 sizes from 10×5 ft to 59.4×10 ft, with two-level pallet exchange that loads while the machine cuts.

Specifications

IPG Source

Available6 / 8 / 12 / 15 / 20 / 30 / 50 kW

Bevel

Range1° to ±45° · V (±), Y (±), X, K

Cutting Head

EVO 3Up to 50 kW · 25 bar · 150/200/250 mm focal

Available Configurations

Model	Flat Working Area	Bevel Working Area
3015	10' × 5'	8.4' × 3.4'
4020	13.3' × 6.7'	11.6' × 5.1'
4525	14.9' × 8.4'	13.3' × 6.7'
6020	20' × 6.7'	18.2' × 5.1'
6025	20' × 8.4'	18.2' × 6.7'
6030	20' × 10'	18.2' × 8.4'
6525	21.5' × 8.4'	19.9' × 6.7'
6530	21.5' × 10'	19.9' × 8.4'
7035	23.1' × 11.6'	21.3' × 9.8'
7037	23.1' × 12.3'	21.3' × 10.6'
7530	24.8' × 10'	23.1' × 8.4'
8020	26.4' × 6.7'	24.7' × 5.1'
8025	26.7' × 8.4'	24.7' × 6.7'
9030	29.9' × 10.2'	28' × 8.4'
9037	29.9' × 12.3'	28' × 10.6'
12030	40.5' × 10.1'	37.9' × 8.4'
12037	40.5' × 12.3'	37.9' × 10.6'
13030	43.1' × 10'	42.8' × 8.4'
13037	43.1' × 12.3'	42.8' × 10.6'
15030	49.4' × 10'	47.6' × 8.4'
18030	59.4' × 10'	57.4' × 8.4'

Additional configurations available on request.

Key Features

›Electro-welded, thermally stabilized steel frame
›Cast aluminum gantry, steel beam
›EVO 3 head, 50 kW, 25 bar
›Smart Changer option (auto nozzle)
›Smart Mix gas blending option
›IPG sources 6–50 kW, NEMA 12
›Two-level pallet exchange standard
