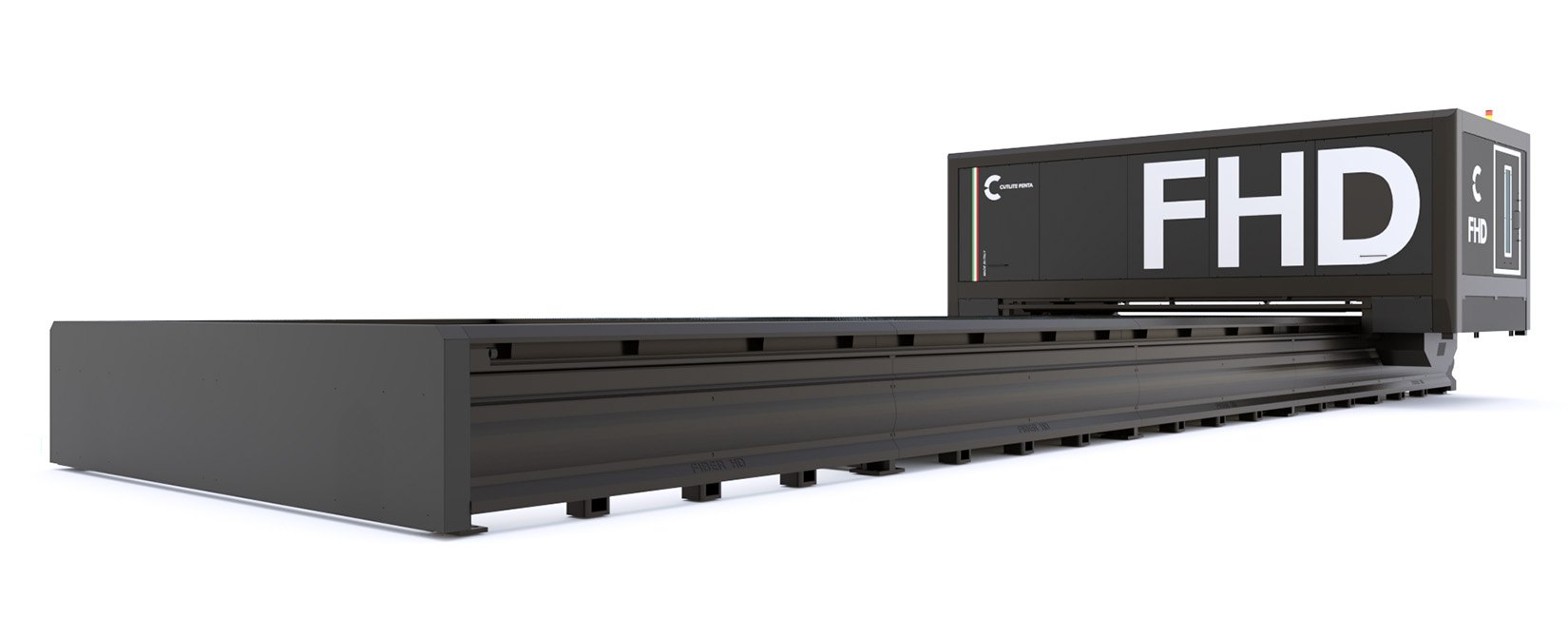

FIBER HD, Plasma Killer
Up to 150×15 ft, 60 kW, built to take work from plasma
Up to 150 × 15 ft · Up to 60 kW
- ✓Take plate work other lasers can't cut
- ✓Smart Bevel Pro for robotic welding prep
- ✓Smart Drill turret adds drilling + tapping
PlateStructuralPlasma ReplacementOxy-Fuel Replacement
Overview
Take plate work your fiber laser can't economically touch and your plasma cuts rough. Large-format fiber laser scaling to 60 kW and 150×15 ft, with a steel table extended along the X-axis for forklift or overhead-crane plate loading. Built to move oxy-fuel and plasma work onto a laser.
Specifications
Source
IPG / Raycus6 / 8 / 12 / 15 / 20 / 30 / 50 / 60 kW
Cutting Head
EVO 3Up to 50 kW · 25 bar · 150/200/250 mm focal
Bevel
Smart Bevel ProV / A / X / Y↑ / Y↓ / K · ±45°
Available Configurations
| Model | Working Area | Source Options |
|---|---|---|
| 4020 | 13.3' × 6.7' | 6 kW |
| 4025 | 13.3' × 8.4' | 8 kW |
| 6020 | 20' × 6.7' | 12 kW |
| 6025 | 20' × 8.4' | 15 kW |
| 6030 | 20' × 10' | 20 kW |
| 6530 | 21.5' × 10' | 30 kW |
| 6537 | 21.5' × 12.3' | 50 kW |
| 8025 | 26.4' × 8.4' | 60 kW |
| 8030 | 26.4' × 10' | , |
| 9030 | 30' × 10' | , |
| 12025 | 40' × 8.4' | , |
| 12030 | 40' × 10' | , |
| 13037 | 43' × 12.3' | , |
| 16025 | 53' × 8.4' | , |
| 16030 | 53' × 10' | , |
| 18025 | 59' × 8.4' | , |
| 18030 | 59' × 10' | , |
| 18037 | 59' × 12.3' | , |
| 24025 | 79' × 8.4' | , |
| 24030 | 79' × 10' | , |
| 24035 | 79' × 12' | , |
| Custom | Up to 150 × 15 ft | , |
Additional configurations available on request.
Key Features
- ›Steel table extended on X-axis for plate loading
- ›Rack-and-pinion motors outside the frame
- ›EVO 3 head with non-contact capacitive sensors
- ›Smart Bevel Pro option (V/A/X/Y/K + 45°)
- ›Smart Drill option (6-position turret)
- ›IPG or Raycus source options
- ›NEMA 12 air-conditioned cabinet
