flat-sheet← Cutlite Penta Italian Fiber Lasers, Tube & SheetModel 3015 / 4020 / 6020

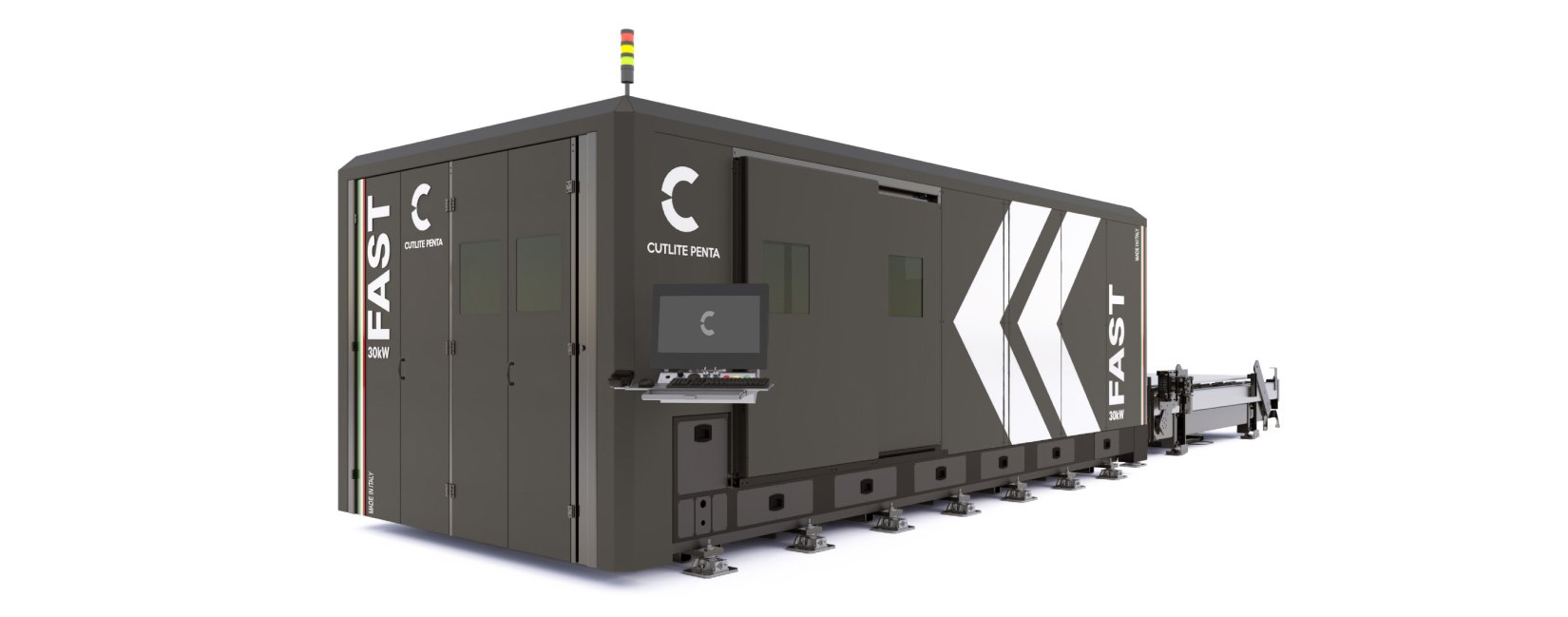

FAST, High-Dynamic Sheet Laser
4.2 G linear-motor gantry, zero radial jerk
10×5 ft to 19.9×6.7 ft
- ✓4.2 G cuts complex shapes at full speed
- ✓EVO 3 head rated 50 kW, 25 bar
- ✓Smart Changer auto-swaps 10 nozzles, lights-out
Sheet MetalThin PlateHigh-Speed Production
Overview
Cut complex shapes at full speed without throwing parts around the table. A redesigned gantry with 100 mm side frames and a low center of gravity puts the linear motors flat on the base, 4.2 G acceleration with zero radial jerk and no table vibration.
Specifications
Cutting Head
EVO 3Up to 50 kW · 25 bar · 150/200/250 mm focal
IPG Source
Available6 / 12 / 15 / 20 / 30 kW
Available Configurations
| Model | Working Area | Source |
|---|---|---|
| 3015 | 10' × 5' | 6 kW |
| 4020 | 13.3' × 6.7' | 12 kW |
| 6020 | 19.9' × 6.7' | 15 kW |
| IPG source options | , | 20 / 30 kW |
Additional configurations available on request.
Key Features
- ›Linear-motor gantry, zero radial jerk
- ›100 mm-thick side frames, low CoG
- ›EVO 3 head, 3 focal configurations
- ›Smart Changer option (auto nozzle, 10 positions)
- ›Smart Mix option, real-time O₂/N₂ blending
- ›IPG fiber, NEMA 12 sealed
