B350C American Precision
Punch3.75" HeightArrow

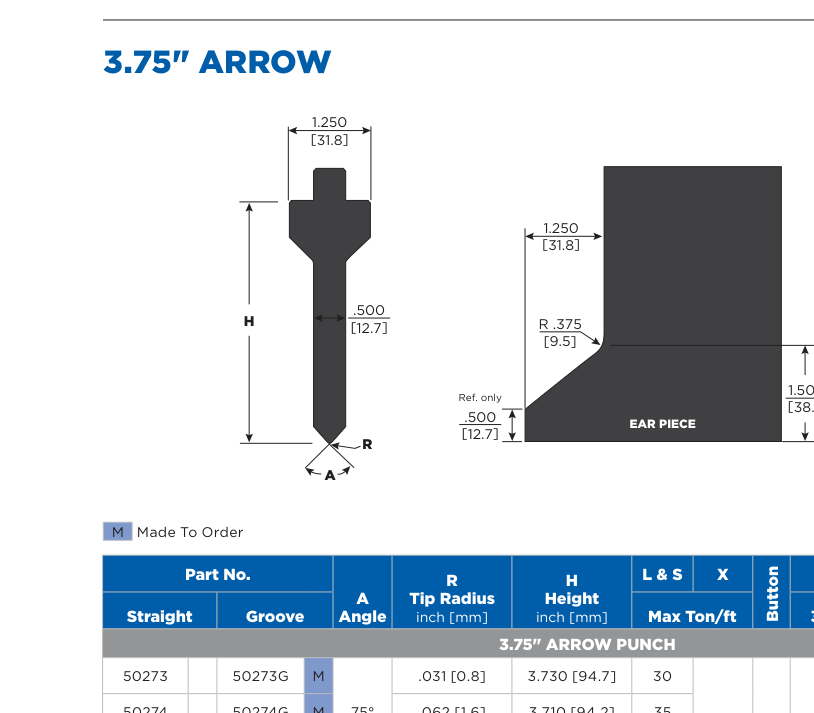

3.75" Arrow Punch
B350C American Precision
The Arrow punch features a narrow, symmetrical profile ideal for tight-radius bending and work where flange height is limited. Multiple angle options adapt to common bend angle requirements in fabrication shops. The compact 3.75" body minimizes tooling interference on short-flange work.
Variants & Part Numbers
| Angle / Config | Length | Part # |
|---|---|---|
| 75° | L – 36" | 50273 |
| S – 18" | 50274 | |
| X – 35.87" Sectionalized | 50275 | |
| 88° | L – 36" | 50049 |
| S – 18" | 50050 | |
| X – 35.87" Sectionalized | 50051 | |
| 90° | L – 36" | 50052 |
| S – 18" | 50053 | |
| X – 35.87" Sectionalized | 50054 |
Add this tool to your quote request, or call Forge for pricing and volume discounts.
Specifications
StyleArrow
Height3.75"
Angles Available75° / 88° / 90°
SystemB350C American Precision
MaterialHardened Tool Steel
Lengths Available36" / 18" / Sectionalized
