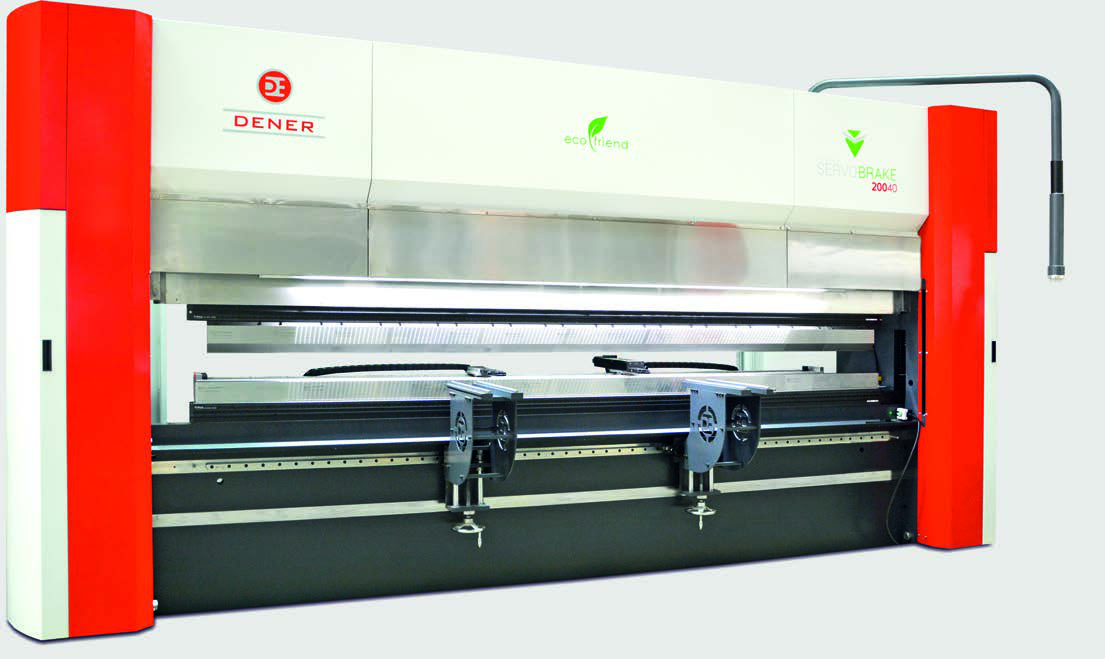

Servo Electric Press Brake, Belt Drive (DDM)
Zero hydraulic oil. Up to half the power bill. Up to 35% faster cycles.
60–200 ton · zero hydraulics · ±0.03 mm accuracy
- ✓No hydraulic fluid means no leaks, no oil floors, no oil-change schedule
- ✓50% lower energy bill, pays back the price difference in 18–36 months
- ✓35% faster cycles means more parts per shift on the same footprint
Servo ElectricNo Oil3D CNC60–200 ton
Overview
Dener's belt-drive DDM line is 100% pure electric, no oil, no hydraulics. Servo drive technology delivers high precision and high bending speed with less noise, and the full bending length runs between the side frames so you keep capacity edge-to-edge. It uses up to 50% less energy than a hydraulic press brake and runs up to 35% faster, with lower maintenance cost. Auto bending-step calculation works directly from STEP and DXF files. ESA 875 W 21" 3D control unit standard.
Specifications
Performance
Drive100% electric servo motors
Positioning±0.03 mm
Energy vs HydraulicUp to 50% savings
Cycle Time~35% faster than hydraulic
Configuration
Tonnage Range60 – 200 metric tons
Bending Length1.5 m – 4.1 m
Throat Depth300 – 450 mm
Stroke200 – 300 mm
Available Configurations
| Model | Tons | Length | Throat | Stroke |
|---|---|---|---|---|
| DDM 6015 | 60 | 1,530 mm · 5' | 300 mm | 200 mm |
| DDM 6020 | 60 | 2,040 mm · 6'8" | 350 mm | 200 mm |
| DDM 8025 | 80 | 2,590 mm · 8'6" | 400 mm | 220 mm |
| DDM 10030 | 100 | 3,050 mm · 10' | 400 mm | 220 mm |
| DDM 13030 | 130 | 3,050 mm · 10' | 450 mm | 250 mm |
| DDM 17035 | 170 | 3,510 mm · 11'6" | 450 mm | 250 mm |
| DDM 20040 | 200 | 4,090 mm · 13'5" | 450 mm | 300 mm |
Additional configurations available on request.
Key Features
- ›100% pure electric belt drive, no oil, no hydraulic cooling, no leaks
- ›Up to 50% less energy than a hydraulic press brake
- ›Up to 35% faster than a hydraulic press brake
- ›High bending speed with less noise
- ›Full bending length between side frames
- ›Auto bending-step calculation from STEP and DXF files
- ›Lower maintenance cost
- ›Positioning accuracy ±0.03 mm
- ›ESA 875 W 21" 3D controller standard
- ›4-axis (Y1, Y2, X, R), Z1, Z2 optional
- ›Quiet operation, suitable for shops near offices or housing
