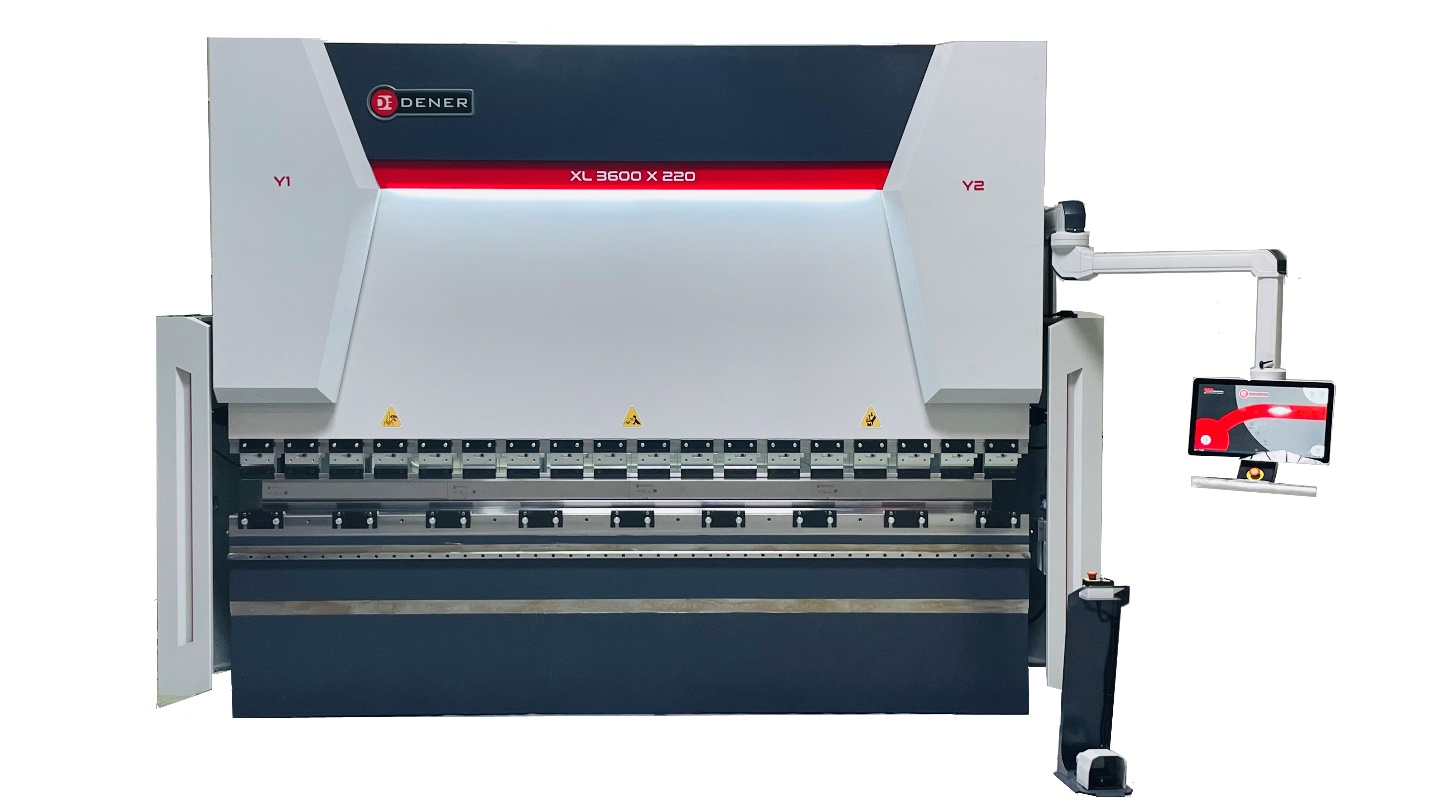

HydraulicPUMA XL Synchronized Hydraulic Press Brake
The flagship, 15 sizes, 60 to 600 tons, every one bends to ±0.01 mm
60–600 ton · 2.4–7.1 m · 3D ESA controller · ±0.01 mm
- ✓Run a complex 7-bend part with auto sequence calculation, no operator math
- ✓±0.01 mm ram repeatability means ID #1 part matches ID #1000 part
- ✓Multi-axis backgauge keeps long flanges square without re-fixturing
Overview
The PUMA XL is Dener's flagship, a synchronized, precision platform built for shops bending complex geometries every day. Long stroke and deep throat give you room for tall, awkward parts; more ram speed and longer back-gauge reach keep the cycle short. Closed-loop feedback valve control and CNC crowning hold the angle across the full length. A 21" 3D color touch screen running Windows drives 3D part programming and auto bend-sequence calculation. 15 standard configurations span 60 to 600 tons and 2.4 m to 7.1 m, with ram repeat accuracy of 0.0004" (±0.01 mm). The PUMA XL is available in Hybrid and full-electric form, fast, quiet operation, lower electric usage and breaker size, and less or no hydraulics to service. Built with proven components (Hoerbiger, Unimec, Siemens, Fiessler, Mitsubishi) and CE certified.
Specifications
Performance
Configuration
Control & Hydraulics
Available Configurations
| Model | Tons | Length | Throat | Stroke |
|---|---|---|---|---|
| PUMA XL 1560 | 60 | 2,445 mm · 8' | 400 mm | 220 mm |
| PUMA XL 2060 | 60 | 2,845 mm · 9'4" | 400 mm | 220 mm |
| PUMA XL 26100 | 100 | 3,320 mm · 10'10" | 450 mm | 300 mm |
| PUMA XL 30100 | 100 | 3,725 mm · 12'2" | 450 mm | 300 mm |
| PUMA XL 30135 | 135 | 3,745 mm · 12'2" | 450 mm | 320 mm |
| PUMA XL 30175 | 175 | 3,745 mm · 12'2" | 450 mm | 350 mm |
| PUMA XL 30220 | 220 | 3,745 mm · 12'2" | 450 mm | 350 mm |
| PUMA XL 36175 | 175 | 4,290 mm · 14'1" | 450 mm | 350 mm |
| PUMA XL 40220 | 220 | 4,740 mm · 15'7" | 450 mm | 350 mm |
| PUMA XL 40320 | 320 | 4,780 mm · 15'8" | 450 mm | 400 mm |
| PUMA XL 40400 | 400 | 5,000 mm · 16'5" | 600 mm | 400 mm |
| PUMA XL 60320 | 320 | 6,865 mm · 22'6" | 450 mm | 350 mm |
| PUMA XL 60400 | 400 | 6,905 mm · 22'8" | 600 mm | 400 mm |
| PUMA XL 60600 | 600 | 7,145 mm · 23'5" | 600 mm | 450 mm |
Additional configurations available on request.
Key Features
- ›Long stroke and deep throat depth for tall, awkward parts
- ›More ram speed and longer back-gauge reach than prior generations
- ›Closed-loop feedback valve control for repeatable angles
- ›CNC crowning table compensates deflection across the full length
- ›Synchronized hydraulic ram, 0.0004" (±0.01 mm) ram repeat accuracy
- ›21" 3D color touch screen running Windows (ESA S 660 W)
- ›Y1, Y2, X, R axes, multi-axis backgauge with X1, X2, R, Z1, Z2 available
- ›European-style WILA-compatible punch and die holders
- ›160 mm/s approach · 10 mm/s bend · 150 mm/s return speeds
- ›Quality components: Hoerbiger, Unimec, Siemens, Fiessler, Mitsubishi
- ›Linear-guided front support arms
- ›Laser finger-protection safety system
- ›Hybrid / full-electric option: fast, quiet, lower breaker size, less or no hydraulics to service
- ›CE certified · vast spare-parts inventory · Dener & Forge service support
- ›Optional auto-bend angle measurer and automatic sheet follower
