Ball Screw← Dener CNC Press BrakesModel DDS Series

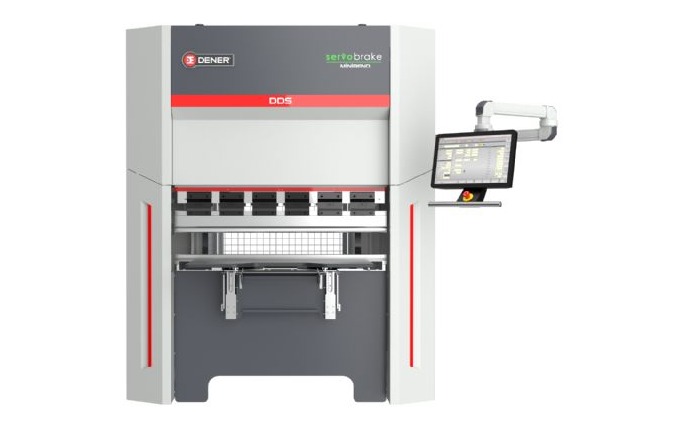

Ball Screw Press Brake (DDS)
Electric ball-screw drive, energy saving up to 50%, light and compact
Ball-screw electric · energy saving up to 50% · STEP/DXF auto-bend
- ✓Get electric drive benefits without paying full servo-line money
- ✓Drop a STEP or DXF on the controller, it calculates the bend program for you
- ✓Energy saving up to 50% vs hydraulic, no oil leaks
Ball-ScrewNo OilEnergy-EfficientSTEP/DXF
Overview
The DDS series uses ball-screw drive in single- or dual-drive configuration. Energy saving up to 50% versus hydraulic, with high bending speed that keeps operation cost low and low maintenance cost throughout. High accurate positioning and repeatability in a light, compact design. ESA S 640 control unit standard, 4-axis backgauge, European segmented tooling, and laser finger-protection safety. Auto-bending calculation works directly from STEP and DXF files.
Specifications
Drive
TypeBall-screw electric (single / dual drive)
Energy vs HydraulicSaving up to 50%
Control
CNCESA S 640
AxesY1, Y2, X, R
ProgrammingSTEP / DXF auto-bend
Key Features
- ›100% electric ball-screw drive, single or dual drive
- ›Energy saving up to 50% versus hydraulic
- ›High bending speed for low operation cost
- ›Low maintenance cost
- ›High accurate positioning and repeatability
- ›Light and compact design
- ›ESA S 640 controller standard
- ›4-axis (Y1, Y2, X, R) backgauge
- ›European segmented tooling system
- ›Laser-based finger-protection safety
- ›Automatic bending calculation from STEP and DXF files
