CNC Machining Centers & Lathes

Get into 5-axis machining or Swiss turning without paying premium-brand prices

Mill Axes3 – 5

Swiss TurnUp to 8 axes

Lathe SwingUp to 65"

Spindle BoreUp to 15"

See the Lineup 515-639-7804

The Lineup

Featured Ganesh models

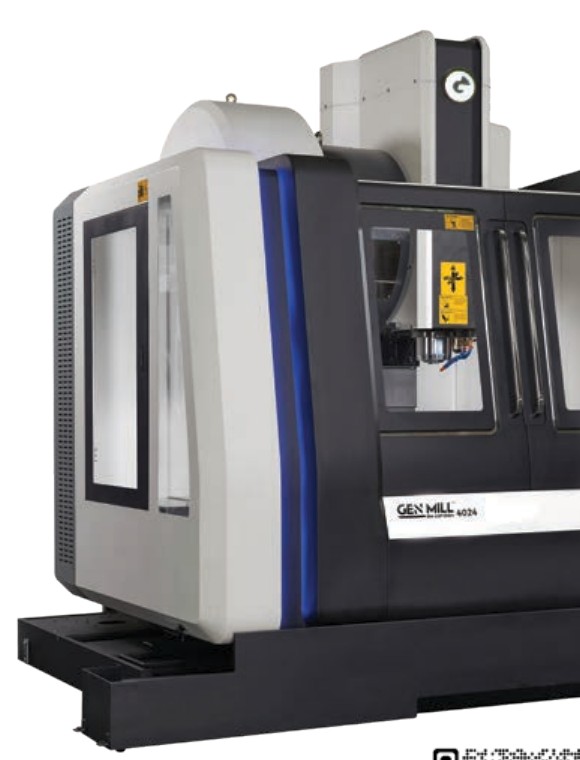

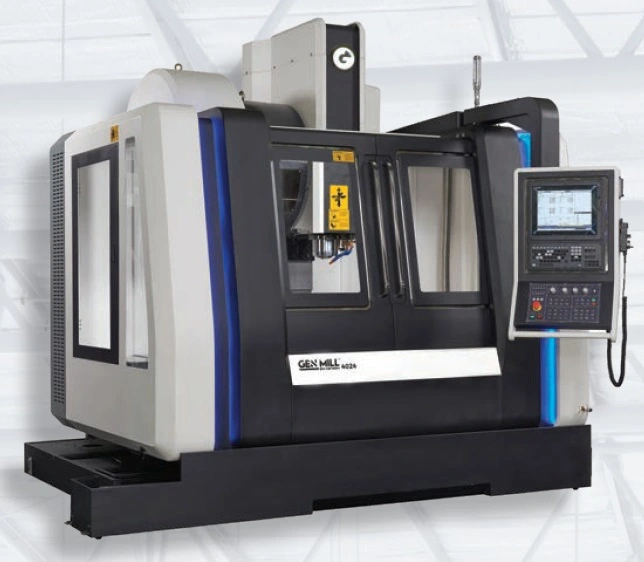

GEN MILL 4024 GEN MILL 4024 Vertical Machining Center

GEN MILL12,000 RPM

Model GEN MILL 4024

GEN MILL 4024 Vertical Machining Center

High-speed VMC built for high-volume quotas, loaded standard

40" × 24" travels · 12,000 RPM direct-drive · 4th/5th axis ready

✓Hit large manufacturing quotas without babysitting cycles, high-speed spindle plus chip conveyor keeps it cutting
✓No surprise add-on invoice, chiller, thru-spindle coolant, and Big Plus spindle ship standard
✓4th and 5th axis wiring is already in place, grow into multi-axis without a control retrofit

Vertical MillHigh-SpeedProduction4th/5th Axis Ready

Full Details →

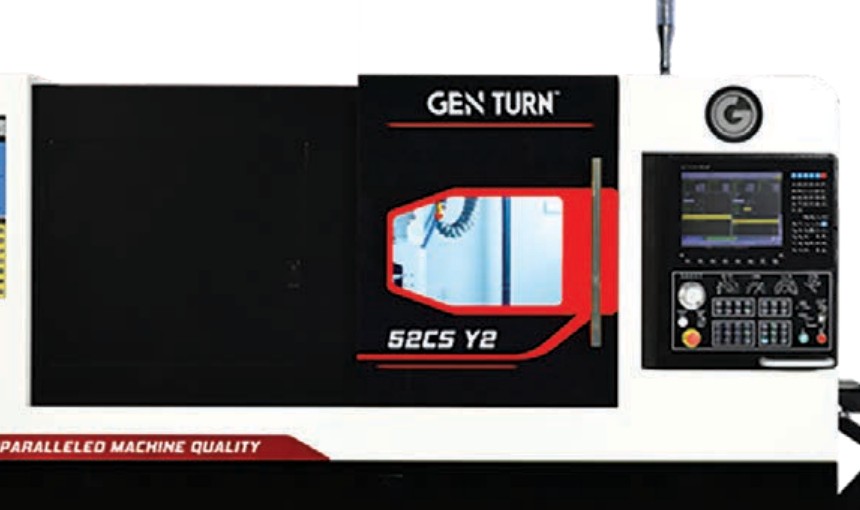

GEN TURN 52-CS Y2 GEN TURN 52-CS Y2 Swiss CNC Machine

GEN TURN8 Axes

Model GEN TURN 52-CS Y2

GEN TURN 52-CS Y2 Swiss CNC Machine

8-axis CNC Swiss with 2" bar, main and sub-spindle cut at the same time

8-axis Swiss · 2" bar · 6,000 RPM · 33 tools / 13 live

✓Cut a complex part complete in one cycle, main and sub-spindle machine simultaneously, no second op
✓Full Y axis on both spindles puts milled and cross-drilled features anywhere without re-fixturing
✓Parts catcher and chip conveyor are standard, run lights-out on bar work

Swiss CNC8-AxisLive ToolingSub-Spindle

Full Details →

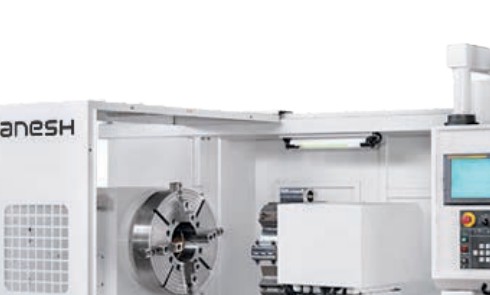

GTD-44-55 HK CNC GTD-44-55 HK CNC Big-Bore Lathe

Heavy Duty Lathes15" Bore

Model GTD-44-55 HK CNC

GTD-44-55 HK CNC Big-Bore Lathe

Up to 15" spindle bore, 44"–55" swing, heaviest-duty in the industry

Up to 15" bore · 44"–55" swing · Fanuc + Manual Guide i

✓Run large pipe and shaft work in-house instead of farming it to a heavy shop
✓Thread repair cycles rethread worn oilfield pipe without hand-chasing every pass
✓Up to 15" bore passes large stock straight through the spindle

Heavy Duty LatheBig BorePipeOilfield

Full Details →

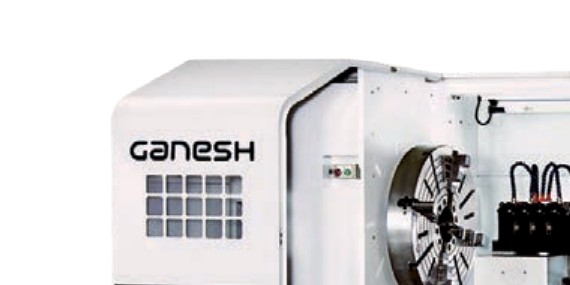

GTD-44F CNC GTD-44F CNC Heavy-Duty Facing Lathe

Heavy Duty Lathes65" Swing

Model GTD-44F CNC

GTD-44F CNC Heavy-Duty Facing Lathe

Heavy-duty CNC facing lathe, up to 65" swing

Facing lathe · up to 65" swing · Fanuc control

✓Face and turn large flanges and discs in one setup on a machine sized for them
✓Bring oversized rotating-component work in-house instead of outsourcing
✓Fanuc Manual Guide i shortens setup on one-off large parts

Heavy Duty LatheFacing LatheLarge Diameter

Full Details →

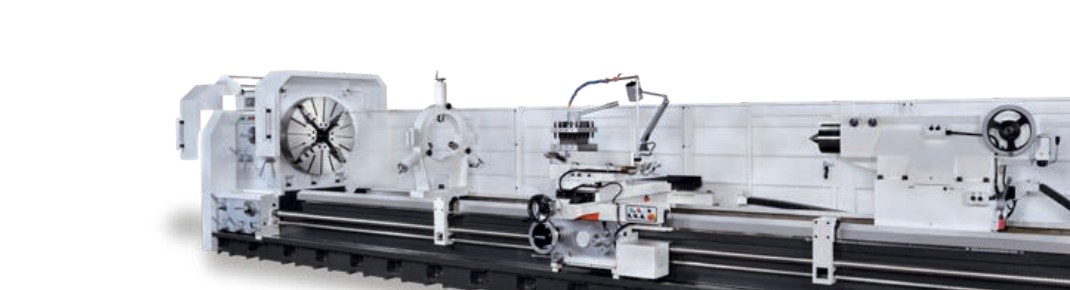

GTD-44/65 HK GTD-44/65 HK Big-Bore Lathe

Heavy Duty Lathes315" BC

Model GTD-44/65 HK

GTD-44/65 HK Big-Bore Lathe

44–65" swing, up to 315" between centers, long shaft work

44–65" swing · up to 315" between centers

✓Turn long rolls and drive shafts complete, up to 315" between centers in one setup
✓Big swing plus long bed handles parts that don't fit any other lathe on the floor
✓Choose manual or Fanuc CNC to match the work and the operator

Heavy Duty LatheLong BedShaft WorkBig Bore

Full Details →

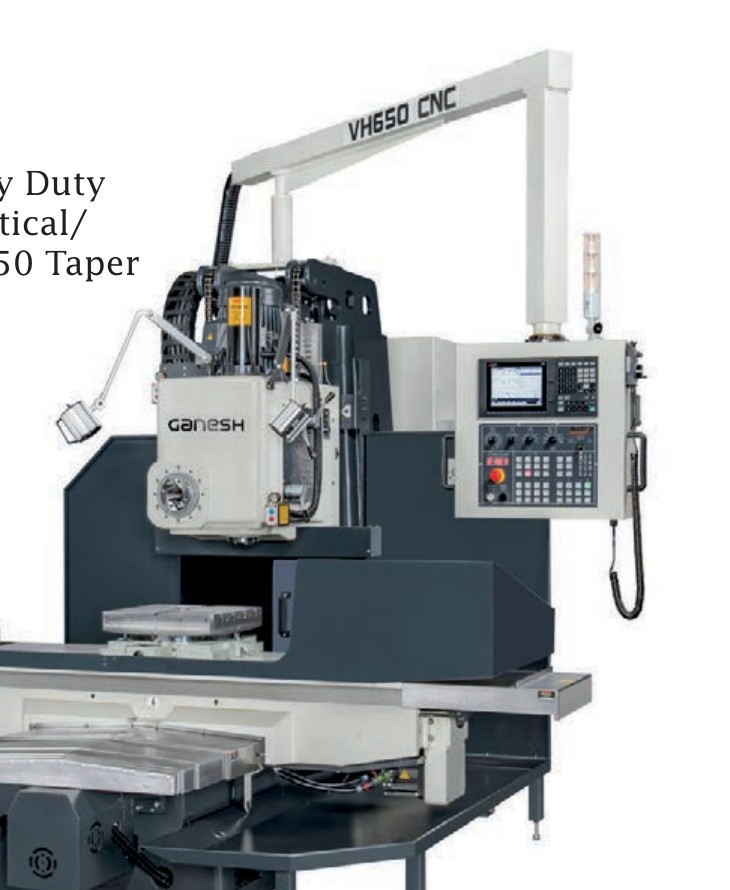

VH-6508 VH-6508 Geared-Head Vertical/Horizontal Mill

Heavy Duty Mills50 Taper

Model VH-6508

VH-6508 Geared-Head Vertical/Horizontal Mill

86" × 23.6" table, 50-taper geared head, manual or CNC

86" × 23.6" · 50 taper · vertical/horizontal

✓50-taper geared head takes heavy cuts in steel through Inconel without bogging
✓Vertical and horizontal in one machine cuts down re-fixturing on large parts
✓Optional manual 4th axis reaches all sides of the part without a second op

Heavy Duty Mill50 TaperVertical/HorizontalManual or CNC

Full Details →

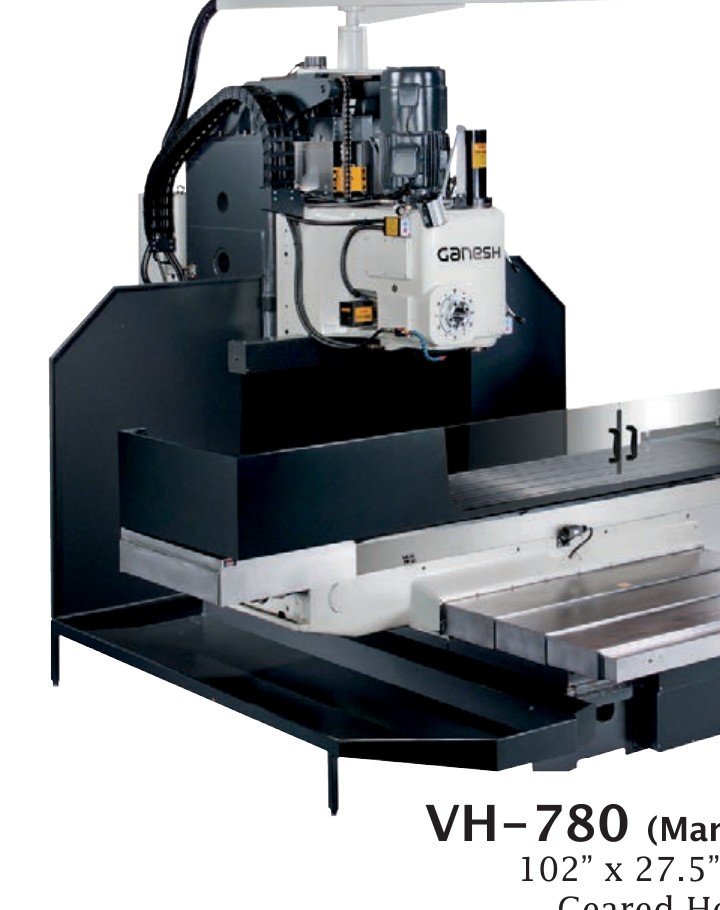

VH-780 VH-780 Geared-Head Vertical/Horizontal Mill

Heavy Duty Mills102" Table

Model VH-780

VH-780 Geared-Head Vertical/Horizontal Mill

102" × 27.5" table, 50-taper geared head, manual or CNC

102" × 27.5" · 50 taper · vertical/horizontal

✓Big 102" table takes long weldments and plate without re-clamping
✓50-taper geared spindle holds feed in hard alloys
✓Manual or CNC, plus optional 4th axis, configure to the work

Heavy Duty Mill50 TaperVertical/HorizontalManual or CNC

Full Details →

Product Architecture

4 product families

1 model

GEN MILL Machining Centers

High-speed, high-accuracy 3 to 5-axis CNC milling centers for general production and aerospace work.

1 model

GEN TURN CNC Lathes

CNC turning, multi-tasking, and Swiss-style machines for complex small-part work in one cycle.

3 models

Heavy Duty Lathes

Big-bore flat-bed lathes, 22" to 65" swing, up to 315" between centers, up to 15" spindle bore. Fanuc control with Manual Guide i.

2 models

Heavy Duty Mills

50-taper geared-head vertical/horizontal bed mills, manual with DRO or CNC with Fanuc control, built for steel through Inconel.

For Your Shop

Run aerospace-grade tolerances on a 5-axis VMC, or finish a complex turn-mill part in one cycle on a Swiss-style hybrid, at half the cost of premium-brand equivalents.

What This Solves

Built for shop-floor problems

The old way

With Ganesh

My customer needs aerospace tolerances on a 3-axis Mori. I keep losing the bid to a 5-axis shop.

✓

GEN MILL 5-axis machining centers hit ±0.0002" positioning at half the cost of Mori or DMG Mori. Get into 5-axis without selling the building.

Win 5-axis bids at competitive shop rates

I run a Swiss part that needs 4 setups across 3 machines. Operator scarcity is killing my throughput.

✓

GEN TURN multi-axis turn-mill centers combine turning, live milling, and drilling in one cycle. 4 setups becomes 1. Operator scarcity becomes someone else's problem.

Cycle time drops 60-80% vs multi-machine routing

I want CNC turning capability without paying for a Mazak Integrex.

✓

The GEN TURN 52-CS Y2 runs 8 axes with full C and Y on both main and sub-spindle and a 2" bar capacity, main and sub cut simultaneously at a fraction of premium-brand pricing. Same control philosophy, different price.

40-50% lower entry cost vs premium Swiss multi-tasking

Big pipe, long shafts, and 50"+ flanges keep going to an outside heavy shop and coming back late.

✓

Ganesh big-bore flat-bed lathes run up to 65" swing, 315" between centers, and 15" spindle bore, with Fanuc Manual Guide i and thread repair cycles. Heavy-duty 50-taper mills handle the plate and weldments. Bring the heavy work in-house.

Own the lead time on heavy shaft and pipe work

Why Ganesh

GEN MILL VMCs ship loaded, 12,000 RPM spindle, chiller, chip conveyor, thru-spindle coolant standard
GEN TURN 52-CS Y2: 8-axis Swiss, simultaneous main and sub-spindle machining
Big-bore lathes to 65" swing, 315" between centers, 15" spindle bore
50-taper heavy-duty mills for steel through Inconel, manual or CNC
Forge handles regional service and training across IA, WI, IL
