Roll cylinders and cones with the shortest flat ends in the industry
The Lineup

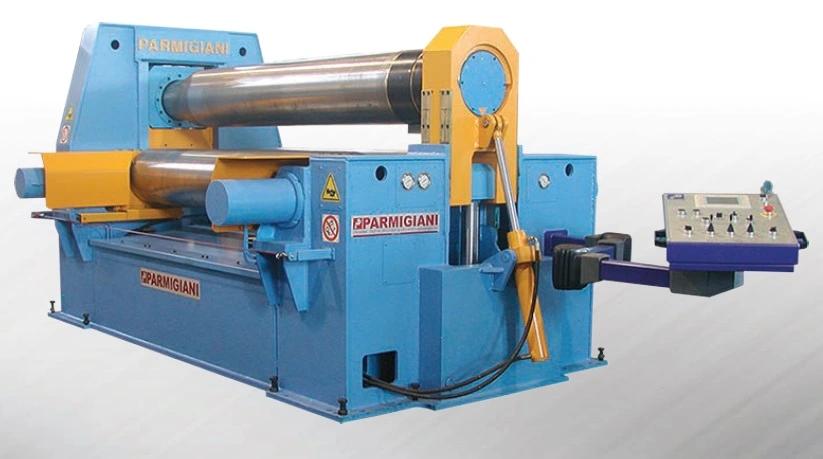

VBH Series280 mmThe flagship 4-roll, shortest flat ends, highest pinching force
Plate up to 280 mm × 8,000 mm · 0.1 mm parallelism
TBH SeriesCone SpecialistFor shops that bend cones all day, multibearing system for sustained torque
Heavy-duty cone bending for production runs

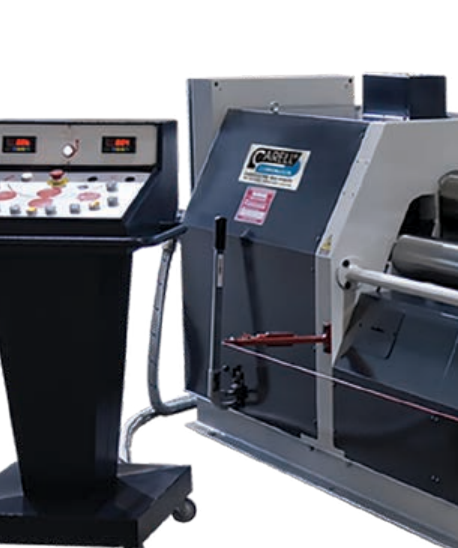

Angle RollsSection BendingRoll structural profiles, not just plate, without sending the work out
Angle, channel, beam, tube, and pipe, rings, arcs, and spirals
Product Architecture
Built for cylindrical and conical bending. Maximum bottom-roller pinching force for shortest flat ends.
Multibearing system for intensive production and cone-bending. Highest reliability under sustained torque.
Roll structural profiles, angle, channel, beam, pipe, and tube, into rings, arcs, and spirals.
For Your Shop
Bend a 280 mm plate cylinder in one pass with sub-millimeter parallelism. Cone-bend a hopper without re-fixturing. The shortest flat ends in the industry mean less material waste on every roll.
What This Solves
The old way
With Parmigiani
My current plate roll leaves 4-6" flat ends. We have to weld and re-roll, or grind them off.
Parmigiani VBH 4-roll machines have the highest bottom-roller pinching force in the industry, flat ends drop to 1-2" or less, depending on thickness. Less waste, less rework.
Recover 3-5% of plate cost on every cylinder
Cone-bending sections eats hours. Setup, indicator, re-set, indicator, hope it's right.
TBH 4-roll machines are designed specifically for cone-bending intensive production. Multibearing system holds rolls true under torque, set the cone parameters once, run the program.
Cone setup time drops 60-80%
I'm bending pressure vessels for inspection. ASME wants 0.5 mm out-of-round tolerance.
Hydraulic proportional valves on VBH/TBH series deliver ~0.1 mm parallelism precision. Independent hydraulic drive on each roll auto-compensates speed under load.
Hold ASME tolerance without manual adjustment
Why Parmigiani
Sample Work
Get a Quote
Forge is the authorized Parmigiani distributor across the Midwest. Tell us your application, we'll size the right unit and back it with regional service.
