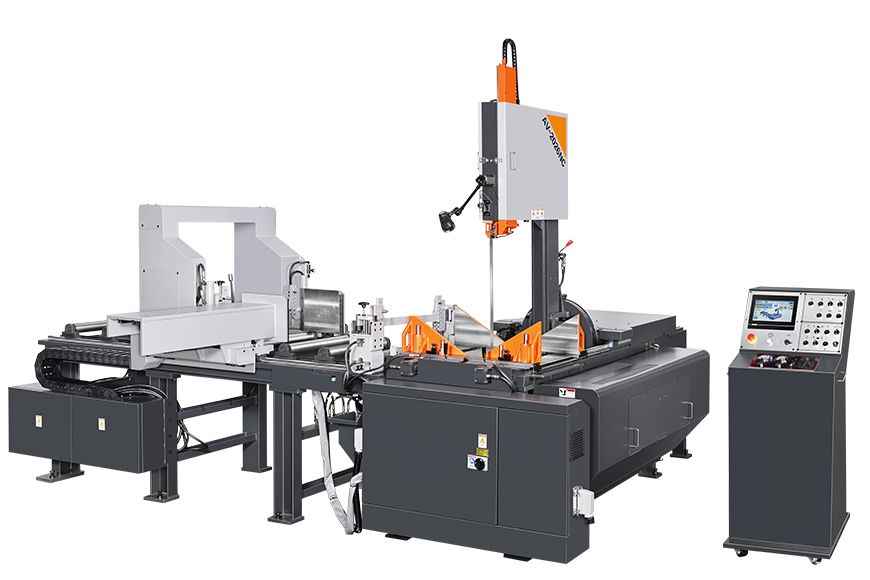

Vertical Tilt-Frame Miter Bandsaw
Compound-angle cuts on beams without a saw operator with a calculator
510 × 660 mm vertical · ±60° miter · 0.1° accuracy
- ✓Type the bend angle, hit go, no manual protractor or trial cuts
- ✓±60° both directions handles every standard structural cut without re-fixturing
- ✓Hydraulic vise pressure adjusts so thin-wall extrusion doesn't crush
VerticalMiter ±60°510 mm
Overview
For fabricators cutting beams, channels, and aluminum extrusion at compound angles. Hydraulic frame tilts ±60° in either direction with automatic angle positioning to 0.1° accuracy via touchscreen, type the angle, the machine sets up. Adjustable blade cant up to 5°, hydraulic rack-gear vises with pressure regulation. Industry 4.0 cloud connectivity available.
Specifications
Cutting Capacity
At 0° cant510 × 660 mm · 20 × 26"
At 5° cant510 × 610 mm · 20 × 24"
Miter Range±60° (0°, 30°, 45°, 90°, 135°, 150°)
Blade & Drive
Blade Size5,230 × 34 × 1.1 mm
Blade Speed20 – 100 m/min · 66 – 328 ft/min
Saw Motor7.5 HP · 5.5 kW
Key Features
- ›Hydraulic frame tilt ±60° both directions
- ›Automatic angle positioning via HMI (0.1° accuracy)
- ›Adjustable blade cant 0 – 5°
- ›7" HMI touch screen with error feedback
- ›Hydraulic rack-gear vises with pressure regulation
- ›Inverter-controlled blade speed
- ›Carbide insert blade guides with rollers
- ›Integral coolant system with separate pump
- ›Optional CPC Connect cloud predictive monitoring
