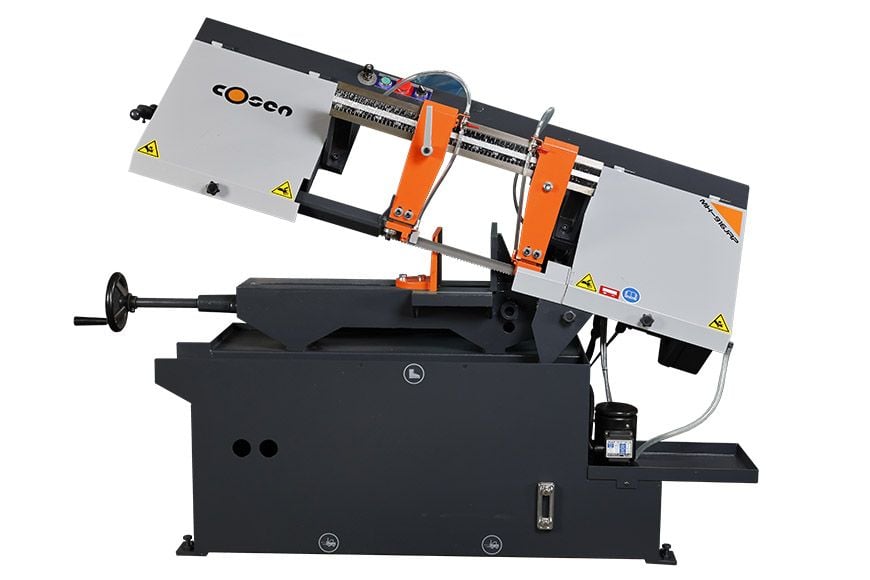

Manual← Cosen Industrial Band SawsModel MH-916JRP
Manual Horizontal Bandsaw
For the shop that doesn't need automation, just a saw that always cuts
Round 230 mm · Rect 230 × 370 mm · 2 HP · 4-speed
- ✓No CNC to learn, no controller to babysit, pull the lever, walk away
- ✓Cast iron vise grips small parts square, every time
- ✓Front-access blade change at waist height, no crawling under the machine
ManualWorkshop230 mmAffordable
Overview
Repair shops, fab shops, and hardware suppliers across the US have been running this saw for decades. Heavy-duty 2 HP reducer, 4-speed transmission, cast iron quick-set vise, carbide blade guides, front-access blade change at waist level. Built for one job: clamp it and cut it.
Specifications
Cutting Capacity
Round230 mm · 9"
Square200 mm · 7.9"
Rectangular230 × 370 mm · 9 × 14.6"
Blade & Drive
Blade Size3,350 × 27 × 0.9 mm
Blade Speed24 – 81 m/min (50 Hz) · 29 – 98 m/min (60 Hz)
Saw Motor2 HP · 1.5 kW
Key Features
- ›2 HP motor with heavy-duty reducer and 4-speed transmission
- ›Enhanced saw bow rigidity reduces vibration on small parts
- ›Cast iron quick-set vise with manual lead-screw clamping
- ›Carbide blade guides with rigid guide arms
- ›Integral coolant system with blade cleaning brush
- ›Adjustable down-feed rate and cutting pressure control
- ›Front-access blade change at waist level
- ›Bi-metal saw blade with adjustable material stop
