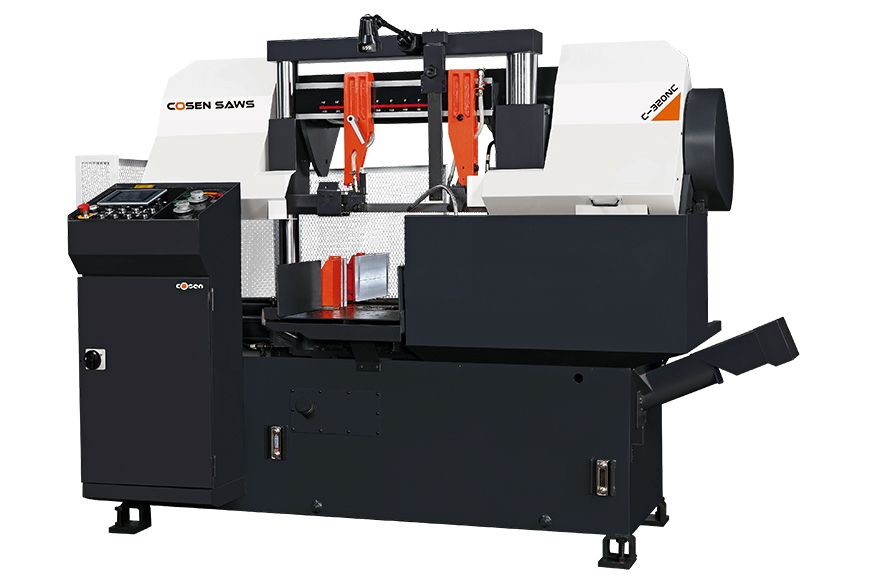

Automatic← Cosen Industrial Band SawsModel C-320NC
Automatic Horizontal Dual Column Bandsaw
The smallest production-grade Cosen, perfect for first-time automation
Round/Square 320 mm · Rect 320 × 380 mm · 100-job memory
- ✓Walk-away production, load 100 jobs, hit start, do something else
- ✓No more "I cut the wrong length", auto kerf compensation handles it
- ✓Stretches blade life with the Save-a-Blade function, fewer changes per shift
AutomaticDual Column320 mm
Overview
Compact footprint, full automation. Same SNC-100 controller as the bigger production saws, 100 cutting jobs in memory, automatic kerf compensation, "Save-a-Blade" wear protection. Round, square, and rectangular stock up to 320 mm.
Specifications
Cutting Capacity
Round320 mm · 12.5"
Square320 mm · 12.5"
Rectangular320 × 380 mm · 12.5 × 14.9"
Blade & Speed
Blade Size4,240 × 34 × 1.1 mm
Blade Speed16 – 103 m/min · 53 – 337 ft/min
Saw Motor5 HP · 3.7 kW
Production
Single Stroke403 mm · 15.8"
Multiple StrokeUp to 99 m / 999 in
Workbed Height790 mm · 31.1"
Key Features
- ›SNC-100 programmable controller with 100-job memory
- ›7" HMI touch screen + Mitsubishi PLC
- ›Automatic blade kerf compensation
- ›"Save-a-Blade" feature for extended tool life
- ›Double-retracting vises with scrape-free plates
- ›Inverter-controlled blade speed (16–103 m/min)
- ›Automatic hydraulic blade tension with breakage detection
- ›Heavy-duty oversized dual-column structure
- ›Hydraulic chip conveyor included
