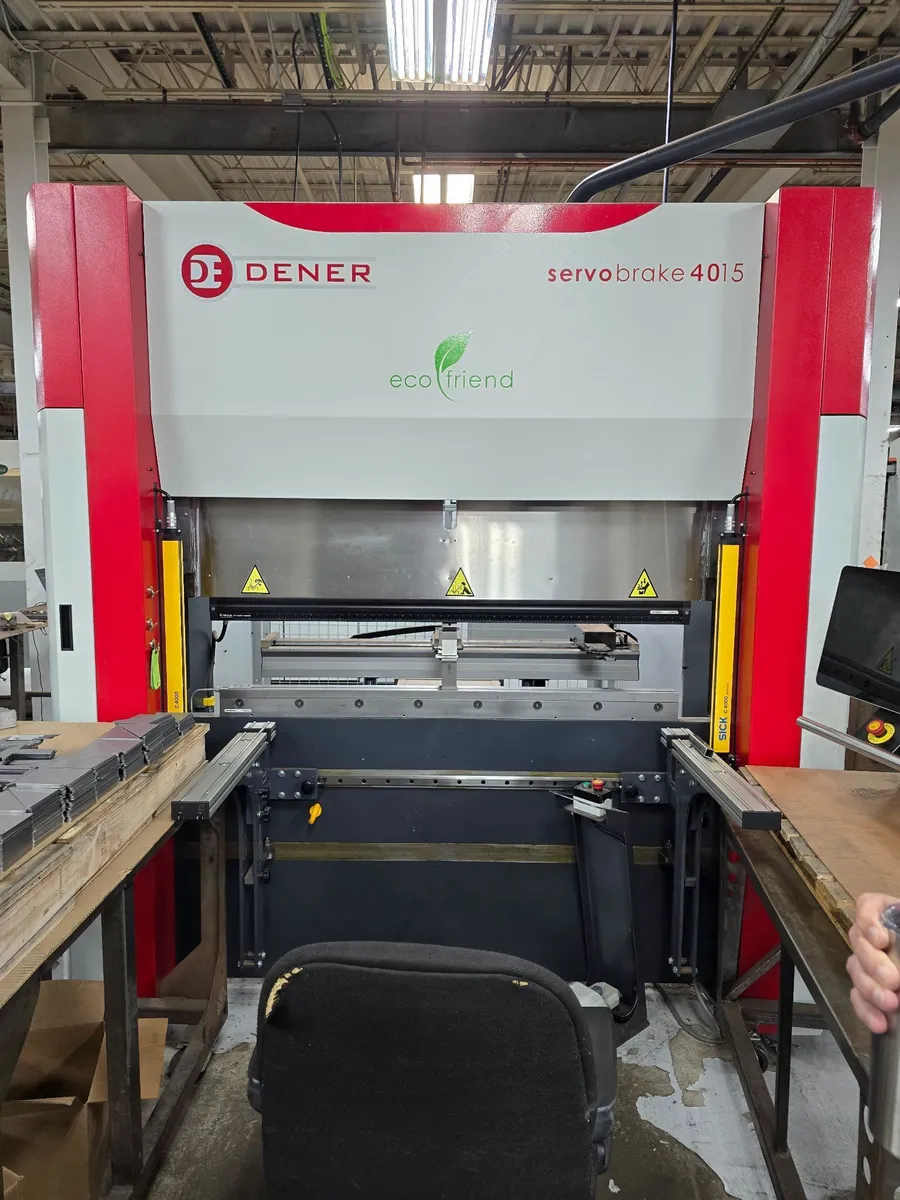

Used 2019 DENER DDM 40-15 SERVO ELECTRIC PRESS BRAKE | Press Brakes

Capacity 44 US Tons 40 metric tons
Ram Repeatability ± 0.0004 Inch ± 0.01mm
Approach Speed Max. 6.7 IPS 170 mm/s
Bend Speed Max. 0.78 IPS 20 mm/s
Return Speed Max. 6.7 IPS 170 mm/s
Punch holder Height 4.72 Inch 120 mm
Back Gauge Speed 39 IPS 1000 mm/s
Back Gauge Repeat Accuracy 0.002 0.05 mm
Back Gauge X Ball Screw Travel 19.6 Inch 500 mm
Back Gauge Max Gauge Point 30.1 Inch 765 mm
R Axis Travel 4.9 Inch 125 mm
Bending Length 60.2 Inch 1530 mm
Distance Between Frames 70.5 Inch 1790 mm
Ram Stroke 11.81 Inch 300 mm
Ram Accuracy 0.0004 Inch 0.01 mm
Daylight w/o punch holders 23.2 Inch 590 mm
Table Height 36.22 Inch 920 mm
Table Width 3.7 Inch 95 mm
Weight 10,140 lbs 4600 kg
Main Motor 14.75 Hp 11 kw
