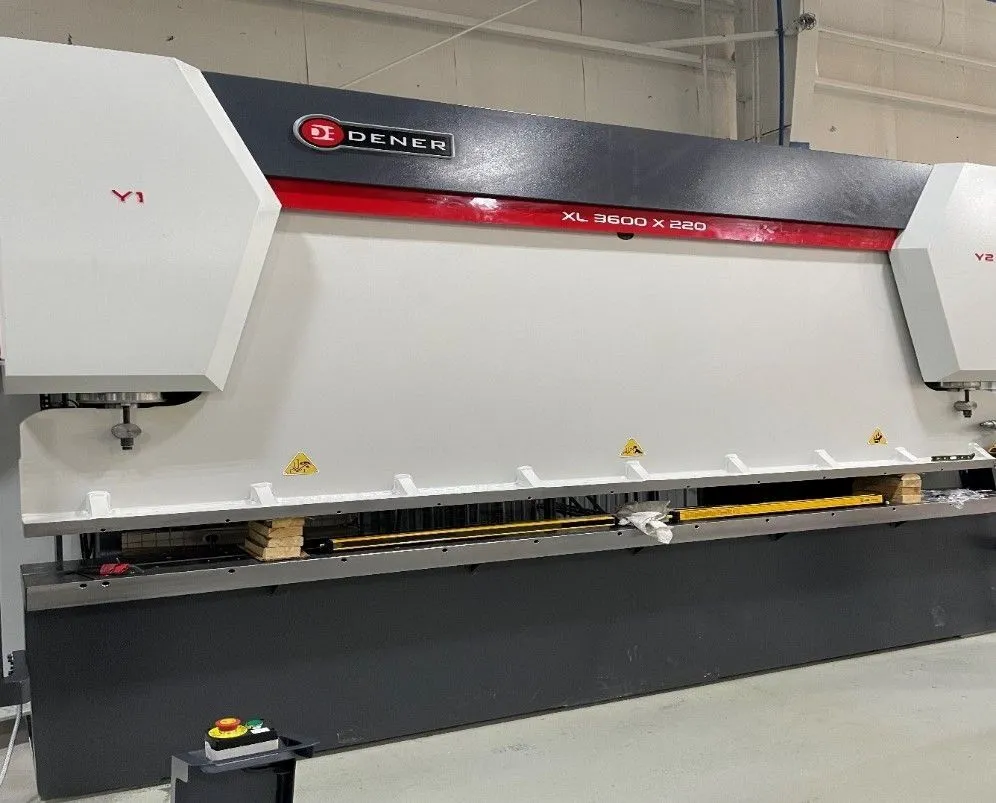

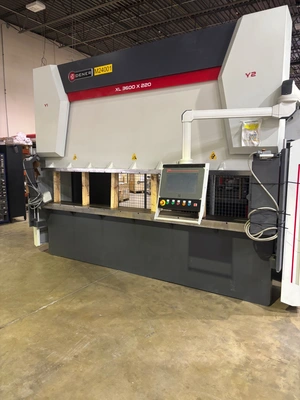

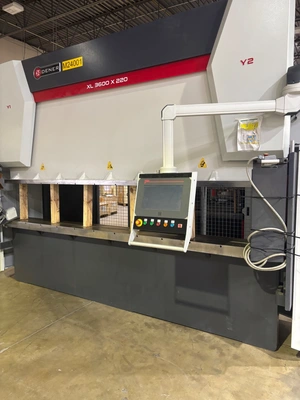

DENER Y1Y2 Press Brake with Wide Bed and Ram Face suited for Wider Tooling
Tonnage
242 T
219.539 t
Type
HYD
HYD
Overall Length
12'
3.7 m
# Axis
2
2
Ram Repeatability
.0004 inch
.0004 inch
Approach Speed Max
5.5 IPS
5.5 IPS
Bend Speed Max.
0.4 IPS
0.4 IPS
Distance Between Frames
122"
3,098.8 mm
Stroke
13.8"
350.52 mm
Open Height
23.6"
599.44 mm
Main Motor
30 hp
Table Height
35.4"
899.16 mm
Oil Capacity
79
79
Return Speed
5.0
5.0
Throat Depth
17.7"
449.58 mm
Daylight (open height)
23.6"
599.44 mm
Control
CNC (ESA 630)
CNC (ESA 630)
Weight
30,000
30,000
Extra Wide Bed and Ram
