U.S. Industrial US20012

Description

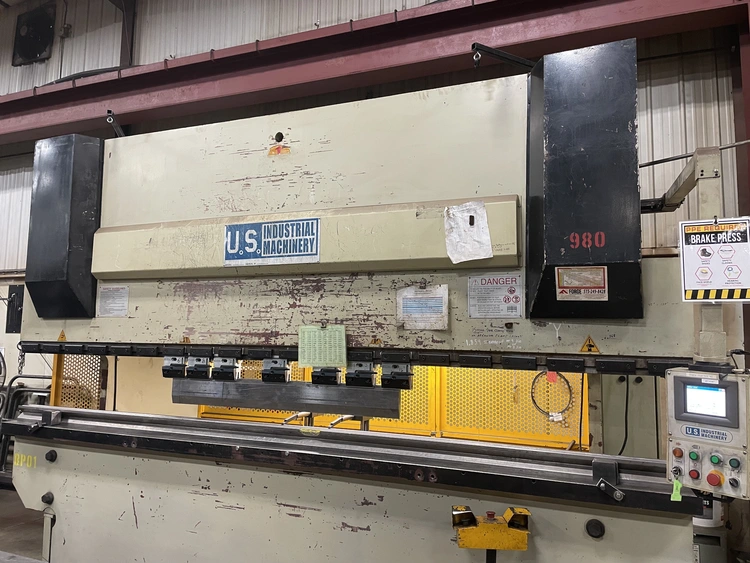

200 ton 12 foot used brake , CNC Control X gauge with Manual R axis

FEATURES:
• CNC 2-Axis Color Graphic Control: Controls BOTH Bend Angle and Backgauge Position. With 6” LCD touch screen. Code and Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
• Setting for ram speed slowdown and rapid return position
• Massive Torsion Bar for Parallelism
• Forged Heavy Duty Cylinder and Cylinder Body
• Three Speed Ram
• Rapid Approach, Bending Cycle and Rapid Retreat
• Bottom Time Delay
• All Steel Construction
• Inching, Single Cycle and Auto Run
• Bed tools are held with standard slot for ½” x 5/8” tang w/set screws, plus die clamps
• Ram takes standard American Tang Tooling (1/2” x 5/8”) and American Safety Tang Tooling
• Space between Ram Tool Clamps allows for deep box bending

SPECIFICATIONS:
• Working Pressure: 200Tons • Hydraulic Oil Capacity: 79 Gal.
• Length of Working Table: 125.9” • Net Weight: 22,046 lbs.
• Distance Between Housings: 106.2” • Length: 148”
• Throat Depth: 12.5” • Width: 64”
• Stroke Adjustment of Ram: 2.75”
• Ram Travel: 5.9”
• Open Height: 16.3”
• Rapid Ram Travel Speed: 2.4”/sec.
• Rapid Ram Retreat Speed: 2.0”/sec.
• Backgauge Travel: 24”
• Motor Horsepower: 15 HP, 220 or 440 Volt, 3 ph. 45/22.5 amp, Currently 440 Volt
